4X UV Image Reducing Converter for Beam Profilers

Products
Accessories
Resources
Contact Us

Overview

The UV image converters are fluorescent plates that convert UV radiation that is poorly imaged by silicon cameras into visible light that is then imaged onto the CCD of the camera. These fluorescent plates are specially designed for UV conversion and have a high light output, wide linear dynamic range and high damage threshold.

Fluorescent plates convert UV radiation
High light output
Wide linear dynamic range
High damage threshold

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		SPZ17024 4X reducing UV image converter UV Image Reducing Converter, 4X, Screw On, 193-360 nm $3,977 In Stock	SPZ17024 4X reducing UV image converter UV Image Reducing Converter, 4X, Screw On, 193-360 nm	UNIVERSAL	0.0	1.0	0.0		0.0	In Stock		$3,977		Ophir

Show All

Specifications

Spectral Range

193-360 nm
Damage Threshold

100 W/cm², 2 J/cm² with beam splitter
Interface

C-mount

Clear Aperture

Ø30 mm
Reduction Ratio

4X reduction ±2% with included correction factor

Accessories

Description	Compatibility	Avail.	Price

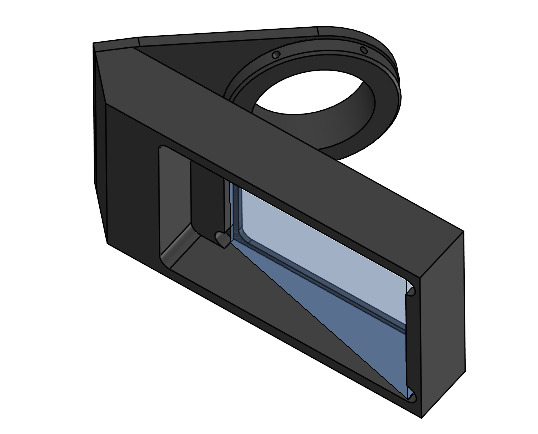

SPZ17007 Beam Splitter, 193 nm, 4X Reducing UV Image Converter	UNIVERSAL	In Stock	$744
LBS-300s Beam Splitter for Laser Beam Profilers	UNIVERSAL			Learn More
LBS-400 Beam Splitter for Laser Beam Profilers	UNIVERSAL			Learn More
