Overview

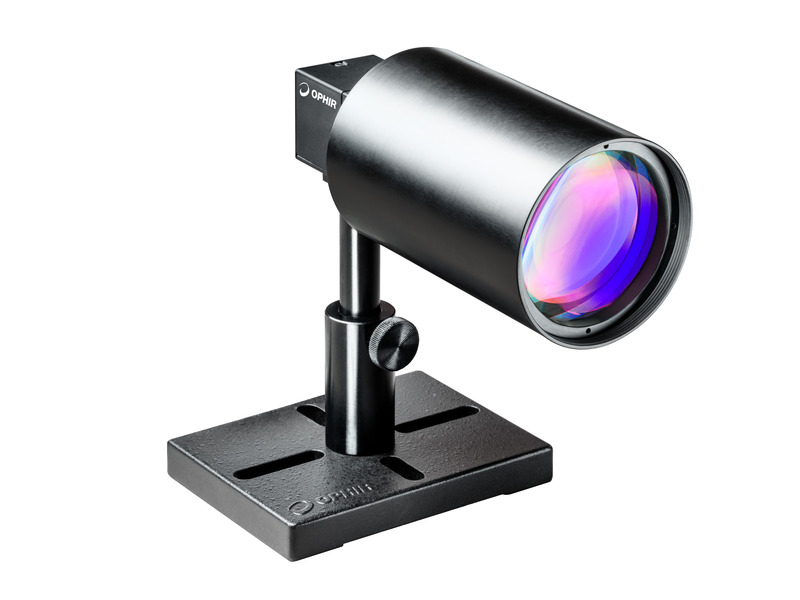

The 4X Beam Reducer is an imaging system that images the plane 30cm in front of the reducer onto the camera CCD sensor while reducing the size 4 times and inverting it. The beam reducer uses the 3 screw on attenuators provided with the camera.

Reduces the size 4 times and inverts it
C-mount
360 to 1100 nm wavelength range

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand

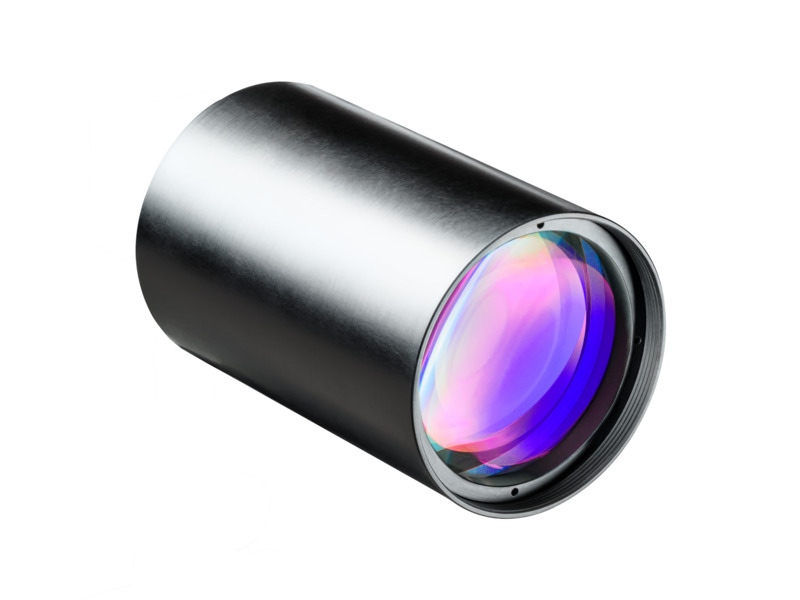

		SPZ17017 4X reimaging beam reducer Beam Reducer, 4X, Screw On, 360-1100 nm $2,773 In Stock	SPZ17017 4X reimaging beam reducer Beam Reducer, 4X, Screw On, 360-1100 nm	UNIVERSAL	0.0	1.0	0.0		0.0	In Stock		$2,773		Ophir

Show All

Specifications

Spectral Range

360-1100 nm
Interface

C-mount
Clear Aperture

Ø50 mm

Damage Threshold

30 mJ for ns pulses
Reduction Ratio

4X

Accessories

Description	Compatibility	Avail.	Price

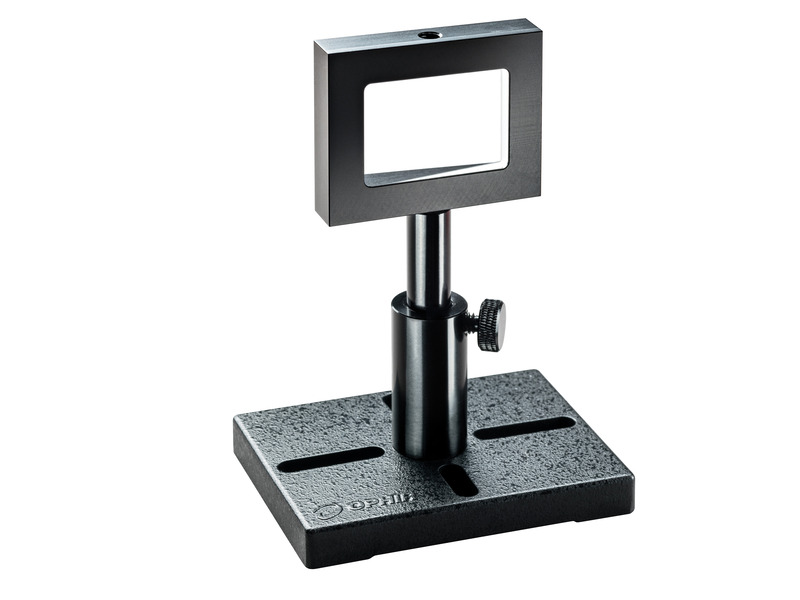

SPZ17018 Large Wedge, UVFS, 44x32 mm	UNIVERSAL	In Stock	$630
LBS-300s Beam Splitter for Laser Beam Profilers	UNIVERSAL			Learn More
LBS-400 Beam Splitter for Laser Beam Profilers	UNIVERSAL			Learn More
LBS-100 Beam Splitter for Laser Beam Profilers	UNIVERSAL			Learn More
SPZ17029 Mounting Adapter, LBS-100 Attenuator to 4X Beam Reducer	UNIVERSAL	In Stock	$801
