LBS-300s Beam Splitter for Laser Beam Profilers

LBS-300s Beam Splitter for Laser Beam Profilers

Products
Features
FAQS
Accessories
Resources
Contact Us

Overview

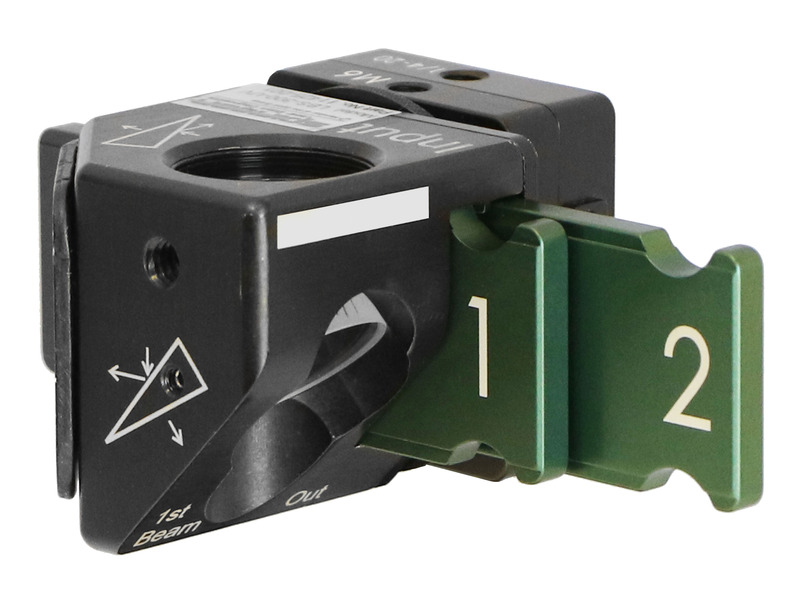

The LBS-300s beam splitter attachment for C-mount, CS-mount, or Ophir mount cameras allows you to measure laser beams with diameters up to 15mm and powers ranging from 10mW to ~400W⁽¹⁾. The beam sampler is designed so that the preferential polarization selection effect of a single wedge is canceled out and the resulting beam image is polarization corrected to restore the polarization components of the original beam.

⁽¹⁾For Gaussian beam diameter <1/2 the clear aperture and depending on ND filter and camera saturation limits the maximum power may be as high as 1000W.

C-mount, CS-mount, or Ophir mount
Diameters up to 15 mm
Powers from 10 mW to ~400 W(1)

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		SP90464 LBS-300s-UV Beam Splitter Attachment, C-mount, CS-mount, Ophir Mount, 266-355 nm $3,269 Show	SP90464 LBS-300s-UV Beam Splitter Attachment, C-mount, CS-mount, Ophir Mount, 266-355 nm	UNIVERSAL	0.0	1.0	0.0		1.0	Show		$3,269		Ophir
		SP90465 LBS-300s-VIS Beam Splitter Attachment, C-mount, CS-mount, Ophir Mount, 400-950 nm $2,589 Show	SP90465 LBS-300s-VIS Beam Splitter Attachment, C-mount, CS-mount, Ophir Mount, 400-950 nm	UNIVERSAL	0.0	1.0	0.0		2.0	Show		$2,589		Ophir
		SP90466 LBS-300s-NIR Beam Splitter Attachment, C-mount, CS-mount, Ophir Mount, 950-1800 nm $2,744 6 Weeks	SP90466 LBS-300s-NIR Beam Splitter Attachment, C-mount, CS-mount, Ophir Mount, 950-1800 nm	UNIVERSAL	0.0	1.0	0.0		3.0	6 Weeks		$2,744		Ophir
		SP90467 LBS-300s-BB Beam Splitter Attachment, C-mount, CS-mount, Ophir Mount, 190-2000 nm 8 Weeks	SP90467 LBS-300s-BB Beam Splitter Attachment, C-mount, CS-mount, Ophir Mount, 190-2000 nm	UNIVERSAL	0.0	1.0	0.0		4.0	8 Weeks				Ophir

Show All

Specifications

Material

UV-Grade Fused Silica
Interface

C-mount

Clear Aperture

Ø17.5 mm

Features

LBS-300 Beam Sampler Overview

The LBS-300 beam sampler allows you to safely measure laser beams with diameters up to 15mm and powers ranging from 10mW to ~400W using a CCD camera. This video describes the LBS-300 features.

Frequently Asked Questions

Can I use LBS both for beam profiling and power measurement?
Answer
Yes, the main function of LBS-300s beam splitter is Beam profiling, however, it performs a 3-way beam splitting: less than 0.01% (1/103) of the beam is reflected in one direction, about 1% in another direction, while the remaining 99% of the incident laser beam is transmitted.
This allows users to measure one of the 3 beams, depending on available power measurement equipment and setup convenience.

Which equipment can be connected to LBS-300s threads?
Answer
LBS-300s is equipped with 2 C-Mount threads and 2 CS-Mount threads.
An input C-Mount thread is designated to connect optional Wedge Splitter (SP90273) to reduce power density or beam extending negative Lenses (SP90187/88/90) to locate the focal spot in required position.
An output C-Mounts thread is mostly used to connect Ophir's Beam profiling camera. Extension tube between LBS-300s and camera can also be used to reduce noise on the camera and power density on LBS-300s adjustable ND filters.
A 1^stand 2^nd beam out, equipped with CS-Mount 1.035-40, enables connecting Ophir Power meters such as PD300R family (7Z02436/7/8/9) or one of the beam deflectors.

What should be my Safety concerns while using LBS-300?
Answer
Regular laser safety precautions should apply. Please note, that the main incident beam will exit the LBS-300 refracted approximately 6°. Provision must be made to safely contain the transmitted beam by beam dump or power meter.

How to deal with removable Beam Blocker?
Answer
The beam blocker is designated to keep one wedge surface protected during handling and shipping. It can be left attached for low power laser operations. However, in the case of high-power laser irradiation scattered light might interfere with beam profile measurement and cause offset. In case of such offset, we recommend removing the beam blocker.
After removal, an additional laser output, having less than 0.1% of incident beam power will be reflected. That beam could be used for simultaneous measurement of laser power via Ophir Power Meter in addition to beam profiler.

Frequently Asked Questions

Can I use LBS both for beam profiling and power measurement?
Answer
Yes, the main function of LBS-300s beam splitter is Beam profiling, however, it performs a 3-way beam splitting: less than 0.01% (1/103) of the beam is reflected in one direction, about 1% in another direction, while the remaining 99% of the incident laser beam is transmitted.
This allows users to measure one of the 3 beams, depending on available power measurement equipment and setup convenience.

Which equipment can be connected to LBS-300s threads?
Answer
LBS-300s is equipped with 2 C-Mount threads and 2 CS-Mount threads.
An input C-Mount thread is designated to connect optional Wedge Splitter (SP90273) to reduce power density or beam extending negative Lenses (SP90187/88/90) to locate the focal spot in required position.
An output C-Mounts thread is mostly used to connect Ophir's Beam profiling camera. Extension tube between LBS-300s and camera can also be used to reduce noise on the camera and power density on LBS-300s adjustable ND filters.
A 1^stand 2^nd beam out, equipped with CS-Mount 1.035-40, enables connecting Ophir Power meters such as PD300R family (7Z02436/7/8/9) or one of the beam deflectors.

What should be my Safety concerns while using LBS-300?
Answer
Regular laser safety precautions should apply. Please note, that the main incident beam will exit the LBS-300 refracted approximately 6°. Provision must be made to safely contain the transmitted beam by beam dump or power meter.

How to deal with removable Beam Blocker?
Answer
The beam blocker is designated to keep one wedge surface protected during handling and shipping. It can be left attached for low power laser operations. However, in the case of high-power laser irradiation scattered light might interfere with beam profile measurement and cause offset. In case of such offset, we recommend removing the beam blocker.
After removal, an additional laser output, having less than 0.1% of incident beam power will be reflected. That beam could be used for simultaneous measurement of laser power via Ophir Power Meter in addition to beam profiler.

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SP90273 Large C-mount Wedge Splitter, 350-2000 nm	UNIVERSAL		In Stock	$1,290
		SP90263 Beam Deflector Assembly, 350-1200 nm	UNIVERSAL		6 Weeks	$425
		SP90287 Beam Deflector Assembly, 266 nm	UNIVERSAL		6 Weeks	$550
		SP90286 Beam Deflector Assembly, 355 nm	UNIVERSAL		6 Weeks	$550
		SP90285 Beam Deflector Assembly, 532 nm	UNIVERSAL		6 Weeks	$538
		SP90284 Beam Deflector Assembly, 1064 nm	UNIVERSAL		In Stock	$538
		SP90575 2’’ LT- Mount Extension Tube, LBS-300s and Camera	UNIVERSAL		In Stock	$107
		SP90574 3’’ LT- Mount Extension Tube, LBS-300s and Camera	UNIVERSAL		Contact Us	$115
		SP90576 LT To External C-Mount Adapter, LBS-300s	UNIVERSAL		In Stock	$63
		SP90577 LT To Internal C-Mount Adapter, Camera	UNIVERSAL		In Stock	$63

Resources

Data Sheets

LBS-300s Beam Splitter Datasheet (286 kB, PDF)

Drawings & CAD

LBS-300 Drawing (820.1 kB, PDF)

Technical Notes

LBS-300s User Notes (846 kB, PDF)
Negative Lenses for LBS-300s for Focal Spot Analysis (434.5 kB, PDF)
Using C-Mount Wedge Type Beam Splitters with the LBS-300 (437.9 kB, PDF)
Integrated Solutions

Catalogs

Laser Beam Profilers Catalog (7.6 MB, PDF)

Technical Articles

Tutorials

Laser Profiling 101

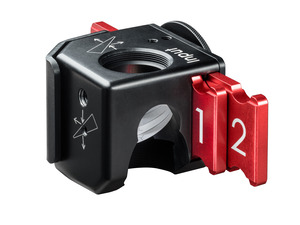

LBS-300HP-NIR Beam Splitter for High Power Laser Beam Profilers
