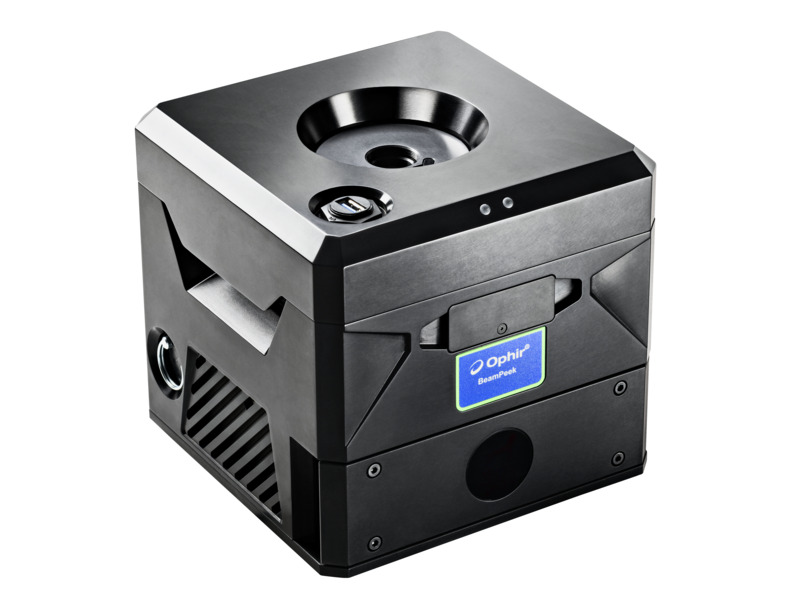

The BeamPeek™ system allows real-time beam profiling analysis, including focal spot size and position monitoring, and beam caustic and power measurement of Additive Manufacturing (AM) lasers in Green and NIR range. It tracks how those parameters change with time to assist in the maintenance of quality and repeatability of the manufactured parts. The BeamPeek™ integrates a laser beam profiler camera, power meter, beam dump, beam splitters, and optics to provide an all-inclusive solution for additive manufacturing laser analysis in an industrial environment.

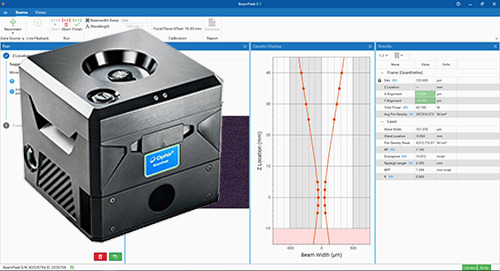

BeamPeek™ software is specifically developed to focus on the needs of Field Technicians in the additive manufacturing industry. It can measure essential parameters for additive manufacturing with minimal user inputs.
The BeamPeek allows up to 2 minutes of continuous measurement at 1kW with passive cooling, no need for a fan or water/air chilling through the interchangeable beam dump cartridge. Its industrial design makes it easy to integrate into production lines and perform analysis of laser properties without interference with the production process.
BeamPeek™ software is designed to cater to the needs of additive manufacturing field technicians. It provides analysis of critical parameters for ISO Compliant Beam caustic and Power measurement for the Additive Manufacturing industry.
Unlike the BeamCheck that has the focal plane set so that the camera sensor is in focus when laser focus is positioned at bed surface, the BeamPeek camera sensor is approximate 70mm (the exact value is calibrated individually for each device) over the base/machine bed. To get the beam focus on camera sensor the machine bed must move down the by the calibrated value. The reason for this setup is improved power handling: higher maximum power and longer exposure time to high power.

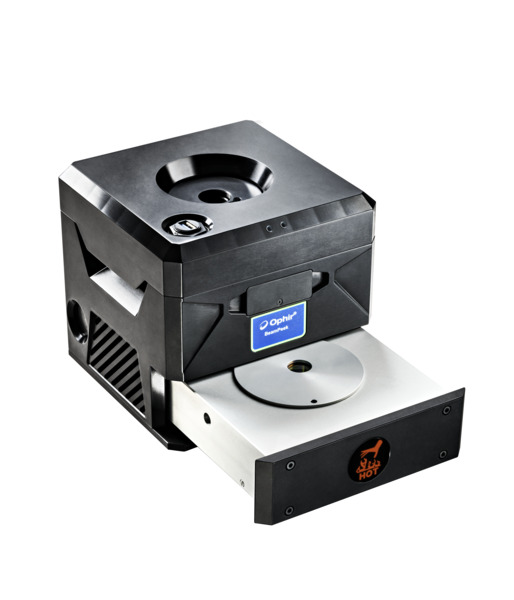

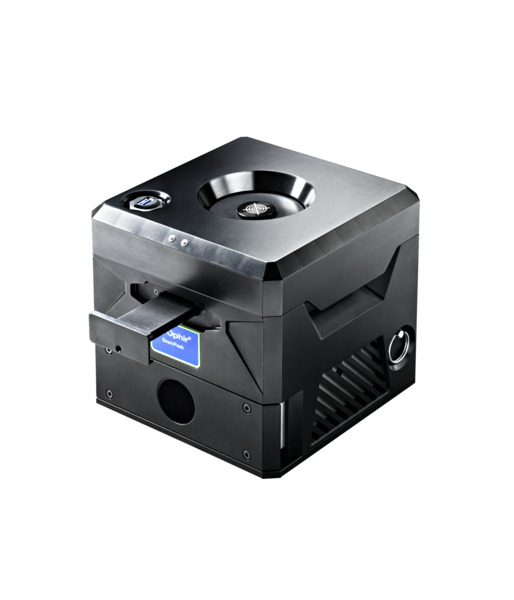

The BeamPeek is designed with some spare regarding overload, power or exposure time; if the recommended values were overpassed there are simple visual inspection besides the functional test that customer can perform: removal of Beam Dump tray, checking cleanliness of the protective window (can be removed and cleaned of outgassing due to very high power density or too long exposure), remove and inspect the diffusing interchangeable lens and looking thru the system aperture with lens removed to verify optics integrity in case of too high power.
Unlike the BeamCheck that has the focal plane set so that the camera sensor is in focus when laser focus is positioned at bed surface, the BeamPeek camera sensor is approximate 70mm (the exact value is calibrated individually for each device) over the base/machine bed. To get the beam focus on camera sensor the machine bed must move down the by the calibrated value. The reason for this setup is improved power handling: higher maximum power and longer exposure time to high power.
The BeamPeek is designed with some spare regarding overload, power or exposure time; if the recommended values were overpassed there are simple visual inspection besides the functional test that customer can perform: removal of Beam Dump tray, checking cleanliness of the protective window (can be removed and cleaned of outgassing due to very high power density or too long exposure), remove and inspect the diffusing interchangeable lens and looking thru the system aperture with lens removed to verify optics integrity in case of too high power.
