Overview

The BeamSquared^® PY-M includes BeamSquared software, software license, for use with your Pyrocam IV or IIIHR camera. Compatible camera must be returned to factory for upgrade at no additional charge. If, upon inspection the camera does not meet specifications, a Repair Charge will be applicable.

BeamSquared software and optical train for Pyrocam sensors
M2 measurement done via manual movement
Requires a Pyrocam IV or Pyrocam IIIHR camera
Unequaled accuracy using patented Ultracal™ Calibration
Requires separate optical train or moving stage for Pyrocam

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		SP90410 BSQ-PY-M BeamSquared PY-M M² Measurement System, BeamSquared Software, Requires Pyrocam Camera $4,020 4 Weeks	SP90410 BSQ-PY-M BeamSquared PY-M M² Measurement System, BeamSquared Software, Requires Pyrocam Camera	UNIVERSAL	0.0	1.0	0.0		0.0	4 Weeks		$4,020		Ophir

Show All

BeamSquared

BeamSquared is our full-function software with an extensive set of ISO M2 measurements with the ease-of-use and flexibility that customers have come to expect..

Specifications

Product Name

BeamSquared® PY-M
Sensor Type

Pyrocam sensor not included
Software

BeamSquared

CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Features

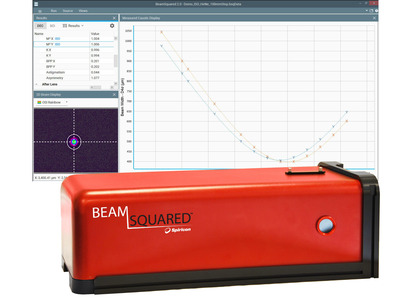

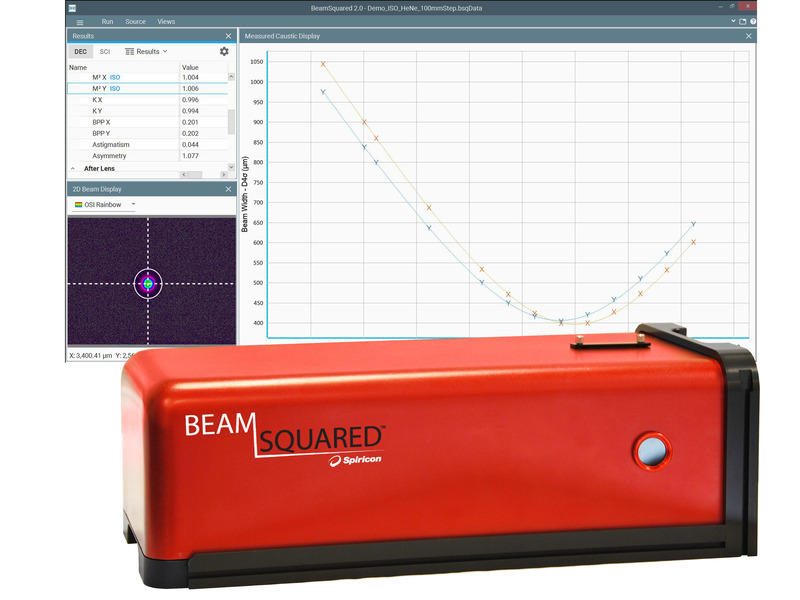

BeamSquared M² Propagation Analyzer

Introducing the BeamSquared, a compact and fully automated tool for measuring the propagation characteristics of continuous wave and pulsed laser systems from the UV to NIR to Telecom wavelengths.

BeamSquared Automated ISO Set-Up

This video describes the BeamSquared software Auto ISO measurement feature, which makes obtaining an ISO compliant beam measurement as easy as "align and click."

Frequently Asked Questions

Are the BeamSquared lenses interchangeable from one BeamSquared unit to another?
Answer
Because of the design of the lenses for the new BeamSquared, you will be able to use lenses on multiple systems. We have included an RFID chip on each lens which holds the information for that lens. We have also programmed the BeamSquared optical trains to have their calibration information stored in the device. With this improvement the configuration files for pairing optical trains and lenses are no longer required making lenses interchangable.

Can any BeamGage camera be used with a BeamSquared system?
Answer
BeamGage systems and BeamSquared systems are separate and the cameras with them are not always interchangeable. However, if you currently have an SP300, SP920, XC-130, or one of our Pyrocam IIIHR or IV cameras, you can upgrade these cameras to be compatible with the BeamSquared software (Note: Pyrocams are not compatible with the optical train).

The cameras sold with BeamSquared systems are not licensed for use with BeamGage. This is an optional item that can be purchased that would allow further analysis with the camera outside of the BeamSquared software.

When in the laser life cycle is the M² measurement the most important?
Answer
M² measurement is important if the stability of your laser is important to your process. Taking M² measurements on a frequent basis allows you to see if your laser is stable from time to time. If the results of the M² measurement fluctuate and a noticeable change happens over time, this could help identify problems with consistency in the laser and help prevent negative results to your process where the laser is being utilized.

Does the BeamSquared internally provide all the necessary attenuation for operation with the direct laser beam?
Answer
Before allowing laser energy to enter the instrument, it is important to limit the beam intensity. Excessive laser energy may cause damage to the camera or the internal components of the BeamSquared optical train.
Typically, a CCD camera sensor can be damaged at energy levels in excess of 1 mJ/cm² or at power levels greater than .15 mW/cm². Adjust these input limits downward based on the likely focused spot size resulting from your M² lens focal length. Beam splitters and/or filters may be used to attenuate the beam, but care must be used to prevent the introduction of distortions.
During an M² measurement operation, the peak energy density that reaches the camera will change, potentially over several orders of magnitude. This is a result of the camera effectively moving from a larger unfocused spot near the lens, into and through the focus at the waist, and then out again to an unfocused spot (see the Adjusting Brightness section in the manual). The Linear attenuators in the optical train will automatically adjust to accommodate these changes in beam intensity, so long as the operator, has prudently selected the initial beam intensity. Thus, it is the operator's responsibility to attenuate the laser sufficiently to operate within the safe dynamic range of the BeamSquared system.

Why can my M2 unit have an M2 measurement less than 1?
Answer
There are two common occurrences when M² results are less than 1. The first and most common of these results from the operator entering the wrong wavelength value. In this case the results are often well below 1, in the .8-.9 range. The second most common cause is due to nominal accuracy tolerances. These are normal and expected. With a 5% M² tolerance results from ~.95 to ~1.05 are possible. Averaging runs will normally return a mean value to something > 1, but not always.

I have an M2-200s unit and a BeamSquared. Can I run both from the same computer?
Answer
The two software programs and their motion controller drivers cannot be installed concurrently. The M2-200s software only supports up to Windows 7 operating systems and uses older motion controller drivers where the BeamSquared software supports up to Windows 10 and uses updated motion controller drivers that are not compatible with the M2-200s system.
To operate them from the same computer requires that the computer be a Windows 7 operating system and that you uninstall the previous program including the motion controller drivers first, then reboot the computer before you can install the other software with its motion controller drivers.
