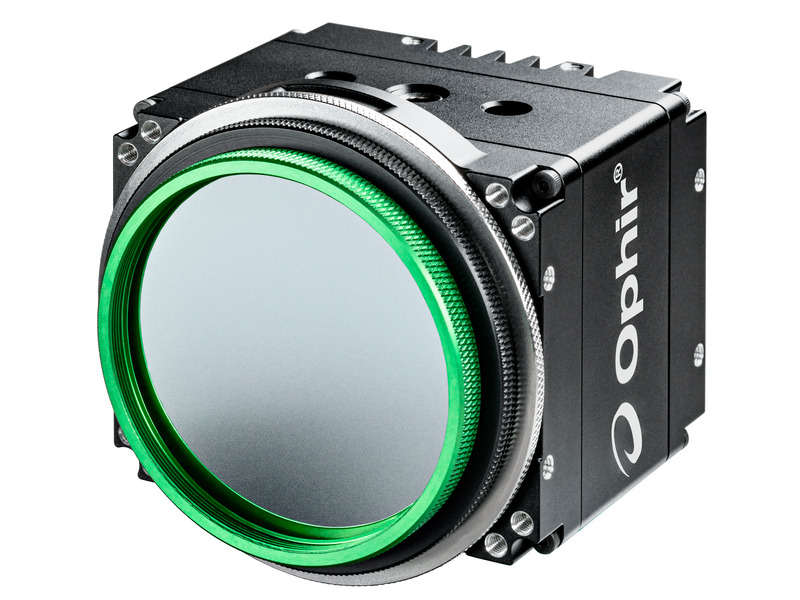

SP504S GigE 5120x5120 340-1100 nm Laser Beam Profiler

Products
Software
FAQS
Accessories
Resources
Contact Us

Overview

The SP504S camera accurately captures and analyzes wavelengths from 340 nm 1100nm. It is our largest active area at a 32.5 mm format, has a wide dynamic range, and unparalleled signal to noise ratio, making it ideal for beam profiling of very large beams.

23mm x 23mm imager format
Highest resolution
CMOS, Global shutter
44.6 dB true dynamic resolution

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		SP90618 BGP-G-SP504S SP504S Laser Beam Profiler, 5120x5120 px, 340-1100 nm, GigE Contact Us	SP90618 BGP-G-SP504S SP504S Laser Beam Profiler, 5120x5120 px, 340-1100 nm, GigE	UNIVERSAL	0.0	1.0	0.0		0.0	Contact Us				Ophir

Show All

BeamGage Professional

BeamGage Professional has all of the functionality that BeamGage Standard includes. BeamGage Professional supports all of our beam profiling cameras, includes window partitioning to allow analysis of multiple beams on a single camera, and includes an automation interface written in .NET to push data to your custom applications.

Specifications

Product Name

SP504S
Spectral Range

340-1100nm
Beam Size

45μm - 23mm
Communication Interface

GigE
Sensor Type

CMOS, Global shutter
Compatible Light Sources

CW, Pulsed
Active Area

23mm x 23mm

Elements

5120 x 5120
Effective Pixel Pitch

4.5μm
Dynamic Range

44.6 dB
Full Resolution Frame Rate

4.5 fps (10 bit mode)
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Frequently Asked Questions

What is the distance from the front of the camera to the sensor?
Answer
The distance from the front of the camera to the sensor is nominally 12.7mm, not including the SM2 adapter.

At what wavelengths is the SP504S most responsive?
Answer

What is the frame rate of the SP504S?
Answer
4.5 Frames/second

The effective frame rates listed in BeamGage specification sheets are the maximum rates typically achievable in actual use when in 2x2 binning mode. Frame buffering, image processing techniques, graphical displays, and mathematical computation all add degrees of overhead to achieving higher frame rates. This can be further limited by the available PC hardware. BeamGage features two modes, Frame Priority and Results Priority, which change how the system balances the work. Results Priority acquires a frame, performs any enabled image processing, performs all calculations and updates the graphical displays before accepting another frame from the camera. This mode is most useful when a temporal sequence of frames is not necessary and should always be enabled when logging. Frame Priority mode will allow the calculations and graphical display updates to be interrupted if another frame is ready from the camera before those operations are complete. This can be useful when collecting all frames at the maximum camera frame rate is necessary.

What beam sizes can I measure with the SP504S?
Answer
45 µm – 23 mm

The accurate beam size minimum is derived by the pixel size of the camera. In order to get an accurate measurement, there must be enough coverage of pixels to ensure that illuminating another pixel will not over exaggerate the beam size.

What is the saturation level of the SP504S camera?
Answer
The saturation intensity for the SP504S is 1.68 mW/cm² at 633nm.

My laptop will not connect to the SP504S while connected to its docking station.
Answer
Many laptops disable the GigE port on the computer when docked. Try using the port on the docking station.
All GigE ports used to connect to the SP504S need to be configured according to the Ethernet Configuration for Ophir-Spiricon GigEVision Products document.

Why is the SP504S frame rate degrading over time?
Answer
If the SP504S is used on a NIC that is not properly configured or does not fully support Gigabit Ethernet speeds, over time the camera frame rate may degrade or stop altogether. Ensure that the NIC driver properties have been optimized according to the Ethernet Configuration for Ophir-Spiricon GigEVision Products document. If the degrading frame rates continue, the camera must be power cycled in order to restore operation.

Frequently Asked Questions

What is the distance from the front of the camera to the sensor?
Answer
The distance from the front of the camera to the sensor is nominally 12.7mm, not including the SM2 adapter.

At what wavelengths is the SP504S most responsive?
Answer

What is the frame rate of the SP504S?
Answer
4.5 Frames/second

The effective frame rates listed in BeamGage specification sheets are the maximum rates typically achievable in actual use when in 2x2 binning mode. Frame buffering, image processing techniques, graphical displays, and mathematical computation all add degrees of overhead to achieving higher frame rates. This can be further limited by the available PC hardware. BeamGage features two modes, Frame Priority and Results Priority, which change how the system balances the work. Results Priority acquires a frame, performs any enabled image processing, performs all calculations and updates the graphical displays before accepting another frame from the camera. This mode is most useful when a temporal sequence of frames is not necessary and should always be enabled when logging. Frame Priority mode will allow the calculations and graphical display updates to be interrupted if another frame is ready from the camera before those operations are complete. This can be useful when collecting all frames at the maximum camera frame rate is necessary.

What beam sizes can I measure with the SP504S?
Answer
45 µm – 23 mm

The accurate beam size minimum is derived by the pixel size of the camera. In order to get an accurate measurement, there must be enough coverage of pixels to ensure that illuminating another pixel will not over exaggerate the beam size.

What is the saturation level of the SP504S camera?
Answer
The saturation intensity for the SP504S is 1.68 mW/cm² at 633nm.

My laptop will not connect to the SP504S while connected to its docking station.
Answer
Many laptops disable the GigE port on the computer when docked. Try using the port on the docking station.
All GigE ports used to connect to the SP504S need to be configured according to the Ethernet Configuration for Ophir-Spiricon GigEVision Products document.

Why is the SP504S frame rate degrading over time?
Answer
If the SP504S is used on a NIC that is not properly configured or does not fully support Gigabit Ethernet speeds, over time the camera frame rate may degrade or stop altogether. Ensure that the NIC driver properties have been optimized according to the Ethernet Configuration for Ophir-Spiricon GigEVision Products document. If the degrading frame rates continue, the camera must be power cycled in order to restore operation.

Accessories

Description	Compatibility
Camera Trigger Optical Sensor	UNIVERSAL	Learn More
LBS-100 Beam Splitter for Laser Beam Profilers	UNIVERSAL	Learn More
LBS-400 Beam Splitter for Laser Beam Profilers	UNIVERSAL	Learn More
