Overview

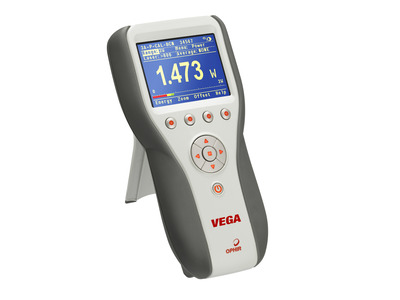

The Vega is a very versatile and sophisticated handheld laser power/energy meter. Just plug in one of the many Ophir sensors and you have a whole measurement laboratory at your fingertips. The bright color display gives unparalleled legibility and ease of interpreting information

Brilliant large 320x240 color TFT display
Compatible with standard Ophir thermal, BeamTrack, pyroelectric & photodiode sensors
Compact handheld design with rubberized bumpers
Choice of digital or analog needle display
Illuminated keys for working in the dark
USB and RS232 output to PC with Statistics package

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Statistics	Analog Out	RS232	USB	GPIB	Availability	Featured Item	Price		Brand
		7Z01560 Vega Vega Laser Power & Energy Meter, 320x240 Color TFT Display $1,698 4 Weeks	7Z01560 Vega Vega Laser Power & Energy Meter, 320x240 Color TFT Display	UNIVERSAL	0.0	1.0	0.0		0.0	Yes	1, 2 ,5 ,10 V	Yes	Yes	No	4 Weeks		$1,698		Ophir

Show All

PC Software & Drivers

This section describes various ways to interface the Ophir meter to your PC as well as the software options available. Check out the datasheet for more details.

StarLab

The StarLab application together with an Ophir meter turns your PC or laptop into a full-fledged laser power/energy meter. Supports most Ophir laser power/energy sensors. Up to 8 sensors can be displayed at once on one PC. By using the Ophir COM Object, you can control the device from your own application. Supports the Ariel, Centauri, StarBright, StarLite, Juno, Juno+, Nova II, Vega, Pulsar-1/2/4, Quasar, EA-1 and Ariel devices.

StarCom

The StarCom application together with the Ophir meters that utilize the RS232 protocol turns your PC or laptop into a full-fledged Ophir laser power/energy meter. StarCom supports all major Ophir sensors. Supports the Nova, LaserStar, Nova-II, and Vega meters.

LabVIEW

Library supplied for a complete measurement interface with most of our USB speaking devices (Centauri, StarBright, StarLite, Juno, Juno+, Nova-II, Pulsar, Vega). Makes use of our new COM object.

Firmware - Vega / Nova II (latest version 2.55)

Embedded s/w for Vega & Nova II Laser Power / Energy Meters
Use StarLab to upgrade the firmware of your device. Follow the step-by-step instructions (see link above).

Specifications

Product Name

Vega
Thermal Sensor Compatibility

Yes
Photodiode Sensor Compatibility

Yes
Pyroelectric Sensor Compatibility

Yes
BeamTrack Sensor Compatibility

Yes
Statistics

Yes
Analog Out

1V,2V,5V,10V
RS232

30 Hz

USB

2000 Hz
Trigger Input/Output

No
On-Board Data Storage

250k
Automation Interface

Yes for USB
Labview VI's

Yes
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Features

Introduction to the StarLab Laser Measurement Application

This video gives an overview of the StarLab application and its various functions. Part 1 of a series of video segments teaching you how to use StarLab.

Setting Your Laser Power Meter To a Custom Wavelength

Learn how to set the correct wavelength for your measurement, even when the wavelength you need is not one of the default wavelengths offered by the meter.

How to see an analog representation of laser power/energy on a scope

Do you sometimes need to see an analog representation of your laser power/ energy on a scope, in parallel to measuring it with a meter? This video will show you how to do that.

Easy Setup of Laser Power Meter and Sensor

See how easy it is to setup an Ophir power meter and sensor to measure your laser's power and energy. Learn more at www.ophiropt.com/photonics.

Clarifications: Range Selection, Measurement Duration

Sometimes, even experienced users of laser measurement equipment come across some issues that, although basic, need to be clarified. This video reviews 2 such issues: (1) selection of correct range when it's not quite obvious (and what happens if one goes over range), and (2) how long a measurement duration may be.

Calibration Factors - Laser Power/Energy Meter

When a power/energy meter is in "Calibrate" mode, various "Factors" are displayed to the user. This video explains the meaning of each of these factors.

Frequently Asked Questions

I have multiple sensors. Do I need a specific meter for each sensor or can I use one meter for all of my sensors?
Answer
With Ophir's Smart Head technology sensors can be interchanged between different meters easily. The calibration and setting information is stored in the sensors Smart Head connector so it moves with the sensor to the new meter. It is recommended that you power off your Nova meter before removing the sensor, but the new Nova II and Vega meters detect that a sensor has been removed or attached and will power cycle themselves when doing this.

What is the Ophir meter zeroing and how often should I zero my power meter?
Answer
In all Ophir instruments, all adjustments, including zeroing internal circuits, are done from the software. This ensures simple and accurate realignment. The zeroing process helps eliminate internal biases in the unit which could affect accuracy and repeatablity of measurements. It is recommended to re-zero the instrument every month or two for best performance. Specific instructions for doing this can be found in the User Guide/Manual for each instrument.

How does an energy meter measure above the maximum frequency at which it can record every pulse?
Answer
The energy meters will then sample at close to its maximum frequency. For instance measuring 10 KHz with a PD10 Sensor and Nova II where the maximum frequency for every pulse on the Nova II is 4 KHz: in this case, the Nova II will pick out pulses at a rate of close to 4 KHz and sample them, i.e. the Nova II will record 40% of the pulses.

I’ve upgraded to the latest version of StarLab and my meter no longer is supported. What happened?
Answer
Whenever we release a new version of StarLab we add support or deal with various other meter-specific issues. This may necessitate upgrading the meter firmware to the latest release. This release is included in the StarLab package and simply enter the Field Upgrade dialog in order to upgrade your meter to be up to date.

Can I use a third party sensor with the Ophir power/energy meters?
Answer
No, only Ophir power/energy sensors with the Smart Head connection will work with the Ophir power/energy meters.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Can I upgrade my Nova-II or Vega software by myself or do I have to send it in to an Ophir distributor?
Answer
The Power and Energy Meter's software can be upgraded by the customer using Ophir's StarLab PC application available for download from the Ophir website.
1. Attach the Power and Energy Meters to your PC with the USB cable provided with the Power and Energy Meters.
2. Go to the bottom of the StarLab page and download the firmware for your Power and Energy Meters
3. Run the StarLab application
4. Select your Power and Energy Meters device and press Diagnostics
5. Select your meter and press the Upgrade button
6. Follow all the on-screen instructions to successfully reprogram the display.
These instructions, including screen captures, can be found at Upgrading Instrument Fireware tutorial.
If the field-upgrade process fails (example, unplug of the USB cable during the upgrade), the Power and Energy Meters will not function properly. Therefore, when turning on the Power and Energy Meters the user gets a blank screen. Note: The Power and Energy Meters can still communicate with the PC. Try to reinstall the Power and Energy Meters software as described above.

How do I use the Analog Output of a meter to get a reading of power? And how accurate is it?
Answer
The analog output of the meter - using the mating connector provided – gives a voltage signal proportional to the actual reading (it is in fact just a D/A translation of what is being displayed), so it represents a fully calibrated reading. The full scale value is a function of the meter being used and the power range it is on. With the StarBright, Vega and Nova II, for example, the user can select full scale analog output voltage ranges of 1, 2, 5 or 10 V, and the 100% level of the chosen power scale is scaled to the full scale voltage. For example: if you choose 5V full scale analog voltage range, and your sensor is set to a 50 W full scale power range, then you will have 5 V = 50 W or 0.1 V/W. It will vary according to the chosen power range and chosen full scale voltage range. The electrical accuracy is stated in the specification (see the User manual) as ±0.2% (of reading) ±0.3% of full scale volts (in addition to the calibration accuracy of the sensor’s reading itself).

Why wasn’t the firmware upgraded to the latest version when the meter was sent in for recalibration?
Answer
Our recalibration process is to not automatically upgrade the firmware in meters when they are sent in for recalibration, unless specifically requested to upgrade it. The reason for this is that we support many companies, such as medical companies, that have equipment validation processes that don’t allow changing the firmware version from the currently validated version. If you do want the latest firmware version installed, we will do that at no additional charge (for meters which are upgraded electronically) if it is specifically requested on the RMA request checklist form. For older meters (such as the Nova) that are upgraded through changing the EEPROM, a nominal fee is added, if firmware upgrade is requested. Note that upgrading the firmware does not affect the calibration.

Can I buy a universal power adapter/charger for my Ophir display?
Answer
Yes. We now offer a switchable universal power adapter/charger P/N 7E05029 for the Ophir displays.

My meter seems to be charging normally, but it lasts for less than an hour on battery power. Does the battery need to be replaced?
Answer
Yes, the battery needs to be replaced. A new battery should last 8 hours per charge. We recommend that you send the meter back for battery replacement and recalibration. User battery replacement is possible. For battery part numbers and ordering information, check out the Spare Parts.

Why doesn’t the StarLab software recognize the Nova II or Vega meter when a RS232 to USB adapter cable is used with the supplied RS232 cable for an interface?
Answer
Unfortunately the interface described above is not sufficient to establish the correct communication protocol for the computer USB to interface to the Nova II or Vega meter. The original USB cable (one is provided with each Nova II and Vega meter) is required for the StarLab software to communicate OK. The USB cable is P/N 7E01205 and is available to order.

What is Ophir Statement of Volatility of Memory for Vega
Answer
Select the range that contains your wavelength, 10A. The sensors have coatings on them that have been characterized and for any wavelength within that range the sensor will be within calibration tolderance including variations in sensitivity within that range. When there is a difference in sensitivity that exceeds the allowable tolerances, a new wavelength range is created and a calibrated for.

Frequently Asked Questions

I have multiple sensors. Do I need a specific meter for each sensor or can I use one meter for all of my sensors?
Answer
With Ophir's Smart Head technology sensors can be interchanged between different meters easily. The calibration and setting information is stored in the sensors Smart Head connector so it moves with the sensor to the new meter. It is recommended that you power off your Nova meter before removing the sensor, but the new Nova II and Vega meters detect that a sensor has been removed or attached and will power cycle themselves when doing this.

What is the Ophir meter zeroing and how often should I zero my power meter?
Answer
In all Ophir instruments, all adjustments, including zeroing internal circuits, are done from the software. This ensures simple and accurate realignment. The zeroing process helps eliminate internal biases in the unit which could affect accuracy and repeatablity of measurements. It is recommended to re-zero the instrument every month or two for best performance. Specific instructions for doing this can be found in the User Guide/Manual for each instrument.

How does an energy meter measure above the maximum frequency at which it can record every pulse?
Answer
The energy meters will then sample at close to its maximum frequency. For instance measuring 10 KHz with a PD10 Sensor and Nova II where the maximum frequency for every pulse on the Nova II is 4 KHz: in this case, the Nova II will pick out pulses at a rate of close to 4 KHz and sample them, i.e. the Nova II will record 40% of the pulses.

I’ve upgraded to the latest version of StarLab and my meter no longer is supported. What happened?
Answer
Whenever we release a new version of StarLab we add support or deal with various other meter-specific issues. This may necessitate upgrading the meter firmware to the latest release. This release is included in the StarLab package and simply enter the Field Upgrade dialog in order to upgrade your meter to be up to date.

Can I use a third party sensor with the Ophir power/energy meters?
Answer
No, only Ophir power/energy sensors with the Smart Head connection will work with the Ophir power/energy meters.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Can I upgrade my Nova-II or Vega software by myself or do I have to send it in to an Ophir distributor?
Answer
The Power and Energy Meter's software can be upgraded by the customer using Ophir's StarLab PC application available for download from the Ophir website.
1. Attach the Power and Energy Meters to your PC with the USB cable provided with the Power and Energy Meters.
2. Go to the bottom of the StarLab page and download the firmware for your Power and Energy Meters
3. Run the StarLab application
4. Select your Power and Energy Meters device and press Diagnostics
5. Select your meter and press the Upgrade button
6. Follow all the on-screen instructions to successfully reprogram the display.
These instructions, including screen captures, can be found at Upgrading Instrument Fireware tutorial.
If the field-upgrade process fails (example, unplug of the USB cable during the upgrade), the Power and Energy Meters will not function properly. Therefore, when turning on the Power and Energy Meters the user gets a blank screen. Note: The Power and Energy Meters can still communicate with the PC. Try to reinstall the Power and Energy Meters software as described above.

How do I use the Analog Output of a meter to get a reading of power? And how accurate is it?
Answer
The analog output of the meter - using the mating connector provided – gives a voltage signal proportional to the actual reading (it is in fact just a D/A translation of what is being displayed), so it represents a fully calibrated reading. The full scale value is a function of the meter being used and the power range it is on. With the StarBright, Vega and Nova II, for example, the user can select full scale analog output voltage ranges of 1, 2, 5 or 10 V, and the 100% level of the chosen power scale is scaled to the full scale voltage. For example: if you choose 5V full scale analog voltage range, and your sensor is set to a 50 W full scale power range, then you will have 5 V = 50 W or 0.1 V/W. It will vary according to the chosen power range and chosen full scale voltage range. The electrical accuracy is stated in the specification (see the User manual) as ±0.2% (of reading) ±0.3% of full scale volts (in addition to the calibration accuracy of the sensor’s reading itself).

Why wasn’t the firmware upgraded to the latest version when the meter was sent in for recalibration?
Answer
Our recalibration process is to not automatically upgrade the firmware in meters when they are sent in for recalibration, unless specifically requested to upgrade it. The reason for this is that we support many companies, such as medical companies, that have equipment validation processes that don’t allow changing the firmware version from the currently validated version. If you do want the latest firmware version installed, we will do that at no additional charge (for meters which are upgraded electronically) if it is specifically requested on the RMA request checklist form. For older meters (such as the Nova) that are upgraded through changing the EEPROM, a nominal fee is added, if firmware upgrade is requested. Note that upgrading the firmware does not affect the calibration.

Can I buy a universal power adapter/charger for my Ophir display?
Answer
Yes. We now offer a switchable universal power adapter/charger P/N 7E05029 for the Ophir displays.

My meter seems to be charging normally, but it lasts for less than an hour on battery power. Does the battery need to be replaced?
Answer
Yes, the battery needs to be replaced. A new battery should last 8 hours per charge. We recommend that you send the meter back for battery replacement and recalibration. User battery replacement is possible. For battery part numbers and ordering information, check out the Spare Parts.

Why doesn’t the StarLab software recognize the Nova II or Vega meter when a RS232 to USB adapter cable is used with the supplied RS232 cable for an interface?
Answer
Unfortunately the interface described above is not sufficient to establish the correct communication protocol for the computer USB to interface to the Nova II or Vega meter. The original USB cable (one is provided with each Nova II and Vega meter) is required for the StarLab software to communicate OK. The USB cable is P/N 7E01205 and is available to order.

What is Ophir Statement of Volatility of Memory for Vega
Answer
Select the range that contains your wavelength, 10A. The sensors have coatings on them that have been characterized and for any wavelength within that range the sensor will be within calibration tolderance including variations in sensitivity within that range. When there is a difference in sensitivity that exceeds the allowable tolerances, a new wavelength range is created and a calibrated for.

Accessories

Carrying Case

Carrying case 38x30x11 cm. For laser power / energy meter and up to three sensors

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		1J02079 Carrying Case, Laser Power & Energy Meter and up to 3 Sensors	UNIVERSAL		In Stock	$194

Cables

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		7E01205 USB Cable, USB to Mini DIN, Nova II and Vega Power Meters	UNIVERSAL		In Stock	$55

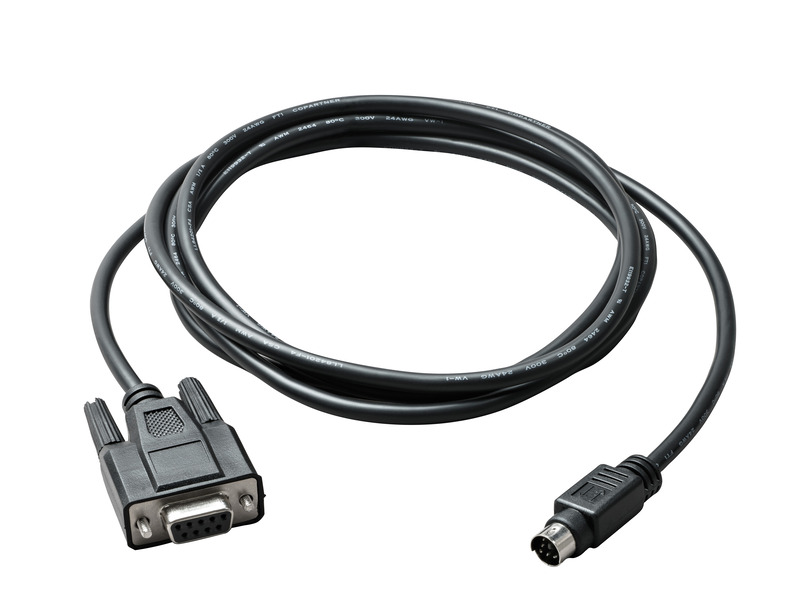

		7E01206 RS232 Cable, DB9 to mini DIN, Nova II and Vega Power Meters	UNIVERSAL		In Stock	$54

Battery Pack

Replacement battery pack for Nova II, Vega and Quasar.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		7E14007A Spare Battery Pack, Nova II, Vega, Quasar Power Meters	UNIVERSAL		Contact Us	$51

N Polarity Power Supply/Charger

Power Supply/Charger for Centauri, Vega, Nova II, LaserStar, Nova, EA-1, Pulsar, Quasar, 6K-W, 120K-W and fan cooled sensors.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		7E05029 DC Power Supply / Charger, N Polarity	UNIVERSAL		In Stock	$52

General Purpose I/O Connector

Used as analog output plug for Centauri, StarBright, StarLite, Vega, Nova II, Nova, and Juno+.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		7E02008 Analog Output Connector, Power and Energy Meter	UNIVERSAL		In Stock	$20
