The SupIR 30-385mm f/5.5 motorized focus MWIR imaging zoom lens enables longer detection, recognition, and identification (DRI) ranges with a compelling combination of performance, reliability and cost, specially designed for anti-drone applications and ideal for long range observation and surveillance systems with vehicle detection range capabilities exceeding 17 km.
Optimized for MWIR 640x512 f/5.5 15 µm detectors
Ruggedized design to withstand harsh environmental conditions
Focus and F# maintained through the full zoom range
Additional drawings are not available for this product.
WFOV (30 mm)
Format
Pitch
640x512
15 µm
18.6°
NFOV (385 mm)
Format
Pitch
640x512
15 µm
1.4°
Specifications
Type
Continuous Zoom
Focal Length
30 to 385 mm
F/#
5.5
Spectral Range
3.6-4.9 µm
Cold Stop FPA Distance
19.7 mm
Cold Stop Clear Aperture
Ø3.52 mm
Back Focal Length
23.7 mm in air
Minimum Focus Range
5 m Wide, 70 m Narrow
Nuc (by defocus)
Yes
Focus Mechanism
Motorized
Focus Time
≤8 s
Zoom Mechanism
Motorized
Zoom Time
≤5 s
Weight
801 g
Dimensions
Ø98 mm x 137.9 mm
Drive Voltage
12 VDC
Current Consumption
0.5 A average, 1.0 A peak at T= -32°C; 0.2 A average, 1.0 A peak at T 20°C
Communication Interface
RS485, RS422
Operating Temperature Range
-32°C to +70°C
Storage Temperature Range
-40°C to +80°C
Sealing
IP 67 front element only
Wavelength Region
MWIR
Features

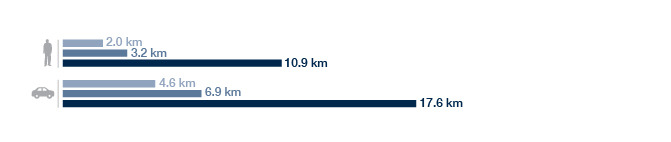

SupIR 30-385mm f/5.5 Detection, Recognition & Identification (DRI) Range
DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!
The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:
Detection: An object is present – 2 pixels on target (Lower Bar)
Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)
Your Long Range Distance Needs Met
Long Range, High Performance
Our MWIR f/5.5 lenses enable longer detection, recognition, and identification (DRI) ranges with a compelling combination of performance, reliability and cost, specially designed for anti-drone applications and ideal for long range observation and surveillance systems with vehicle detection range capabilities exceeding 22 km.
Ruggedized Optical Design
These thermal imaging lenses are designed to withstand harsh environmental conditions with ease of mechanical integration. They are ruggedized with Ophir’s standard, world-renowned coatings, IP 67 front sealing, and mechanical design to withstand severe shock and vibration.
Superior Zoom Controller
These lenses are equipped with Ophir’s state-of-the-art zoom controller features:
Continuous zoom with focus retention
Automatic focus compensation throughout temperature and zoom ranges
Close objects focus mode
Focus blurring for NUC calculation
Full manual / automatic control of zoom and focus positions
Optimal Integration and Calibration
For optimal integration and calibration, these lenses are operated with Ophir’s standard OphirSim™ software which includes:
Lens operation testing and evaluation
Protocol simulation
Lens customer calibration
Autofocus calibration
High Performance Mid-Wave Focal Plane
Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.
Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:
Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings
