The IPM-10KW is a modular industrial sensor for measuring the average power of high-power lasers up to 11kW ideal for tough industrial use It has heavy duty design with industrial interface and connectors, interlock output to protect the sensor from overpower or cooling water failure For extra protection, the user can order the IPM-Shutter10 which provides an automated shutter with a field replaceable anti-reflective coated window. Integration into modern automation systems is available with the IPM-COM communication module (EtherNet/IP and Profinet).

ISO17025 NIST & PTB traceable calibration

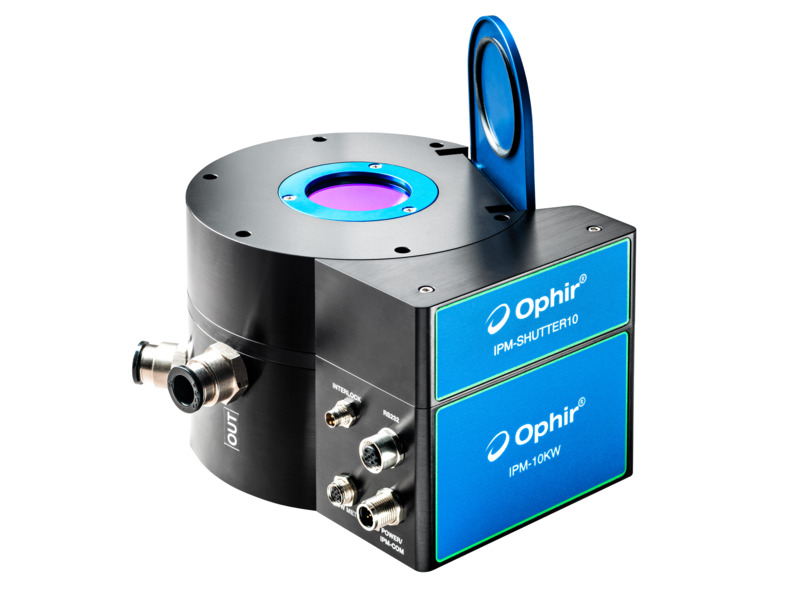

Extra protection with IPM-Shutter10
Easy integration into modern automation systems using RS232 or with IP-COM with EtherNet/IP, Profinet
Interlock to protect from overpower or cooling water failure
Real time visibility, alarm triggering (for corrective actions),traceability and logging for predictive maintenance

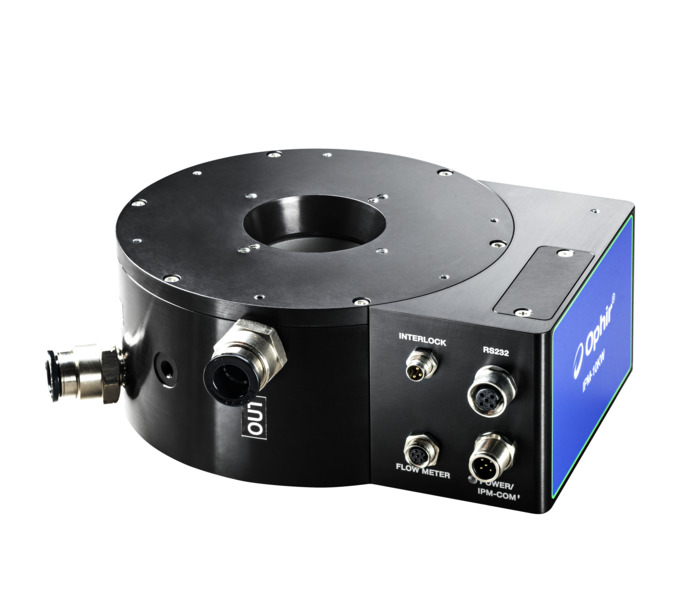

Connection of fibers with customized fiber adapters

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Absorber Type	Aperture Size	Minimum Power	Maximum Average Power	Availability	Featured Item	Price		Brand
		7Z07106 IPM-10KW IPM-10KW 0.9-1.1µm, 10.6µm Water-Cooled Ø45mm Thermal Sensor In Stock	7Z07106 IPM-10KW IPM-10KW 0.9-1.1µm, 10.6µm Water-Cooled Ø45mm Thermal Sensor	UNIVERSAL	0.0	1.0	0.0		0.0	Beam deflector + broadband absorber	Ø45mm	100W	11,000W	In Stock				Ophir

Show All

Firmware – IPM-10KW

Embedded Software for IPM-10KW Industrial Sensor

Latest IPM-10KW firmware (version 1.19)

Use StarLab to upgrade the firmware of your device.
Press Here for step-by-step instructions.

Firmware – IPM-COM (for both IPM-COM-EtherNet/IP-M and IPM-COM-Profinet)

Embedded Software for IPM-COM adapters for industrial protocols
Latest IPM-COM firmware (version 2.02)

Use StarLab to upgrade the firmware of your device.
Press Here for step-by-step instructions.

Profinet Installation: GSDML File
To install the IPM-COM-Profinet into a Profinet network, download the GSDML files and follow the instructions in the User manual.

EtherNet/IP Installation: EDS File
To install the IPM-COM-EtherNet/IP-M into a EtherNet/IP network, download the EDS files and follow the instructions in the User manual.

Service Portal Webpage

Provided as a series of webpages within the IPM-COM unit. It provides a method for a technician to configure the sensor without the need to connect directly to the sensor via RS232, while keeping the interface to the sensor via the industrial protocol (Profinet, EtherNet/IP) as simple as possible. To update the "Service Portal" version use the IPM-COM WEB UTILITY Software

IPM-COM WEB UTILITY Software

Allows user to detect/change the IP Address of the IPM-COM unit. Also enables the user to update the internal Service Portal webpage that allows configuration of the IPM-COM. For instructions how to upgrade the service portal version, see IPM User manual, chapter 9.1.

Specifications

Product Name

IPM-10KW
Absorber Type

Beam deflector + broadband absorber
Aperture Size

Ø45mm
Spectral Range

0.9-1.1µm, 10.6µm
Minimum Power

100W
Maximum Average Power

11,000W
Backscattered Power

~3.5% without IPM-Shutter10, ~1% with IPM-Shutter10

Cooling

Water
Dimensions

Ø179 W x 70 D (mm)
Cable Length

10 m
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Features

IPM-10KW Industrial Power Meter: High Power Laser Measurements for Tough Industrial Use

Meet the new IPM-10KW from Ophir, a modular industrial sensor for measuring the average power of high-power lasers up to 11kW. It has a rugged industrial design, and integrates into modern automation systems using standard industrial communication protocols.

Accessories

Description	Compatibility	Avail.	Price
7Z08409 Combined protective shutter with automated shutter	UNIVERSAL	In Stock
7Z08404 Profinet communications adapter with AIDA connectors	UNIVERSAL	6 Weeks
7Z08405 EtherNet/IP communications adapter with M12 mini 7/8" connectors	UNIVERSAL	In Stock
7Z08411 Kit for replacing the IPM-Shutter10 anti reflective coated window	UNIVERSAL	In Stock
7Z08353 Metric Water Connector, 10 mm, Water Cooled Sensors	UNIVERSAL	In Stock	$29
7Z10532 RS232 cable, M12 male 5-pin to D9 female, 1.8m (1 unit supplied with IPM-10KW)	UNIVERSAL	6 Weeks
7E01519 Power cable, M12 female 5-pin to flying leads, 1.5m (1 unit supplied with IPM-10KW)	UNIVERSAL	8 Weeks
7E01513 Interlock cable, M8 female 3-pin to flying leads, 1.5m (not supplied)	UNIVERSAL	Contact Us
7E01536 Water Flow Meter cable, M8 male 6-pin to flying leads, 1.5m (not supplied) to connect external water flow meter supplied by the customer	UNIVERSAL	Contact Us
7Z10458A Power Supply Cable, AIDA to flying leads termination 5m (1 unit supplied with Helios Pro– Profinet, Helios Pro - EtherNet/IP & Helios Pro – EtherCAT, optional for IPM-COM)	UNIVERSAL	In Stock	$201
7E01298 Plug Cable, RJ45 AIDA to RJ45, 5m (1 unit supplied with Helios Plus – Profinet & Helios Plus – EtherCAT Plus, not supplied with IPM-COM)	UNIVERSAL	In Stock	$124
7E01535 Power Supply Cable, 7/8” to flying leads termination 2m (1 unit supplied with Helios Pro - EtherNet/IP-M, optional for IPM-COM)	UNIVERSAL	Contact Us
7E11211 Data, Ethernet M12 to RJ-45 plug 3m Cable (Optional for Helios Pro - EtherNet/IP-M and IPM-COM)	UNIVERSAL	Contact Us
