Overview

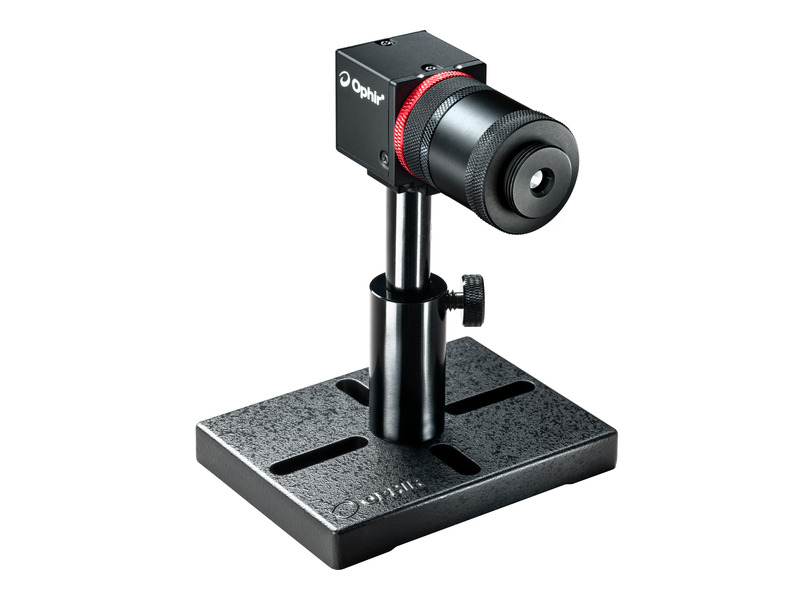

These beam expanders are designed to work with C-mount threaded cameras that have 4.5 mm imager back focal spacing or with CS (12.5 mm) back focal spacing. The 4X beam expander is an expanding telescope that images the beam as it looks at 8 mm from the end of the expander onto the CCD while enlarging the image 4X.

C-mount
4X beam expanding telescope
400 to 1800 nm wavelength range
Screw-on filter and beam splitter compatible
UV converter for imaging beam in 193-360 nm wavelengths

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand

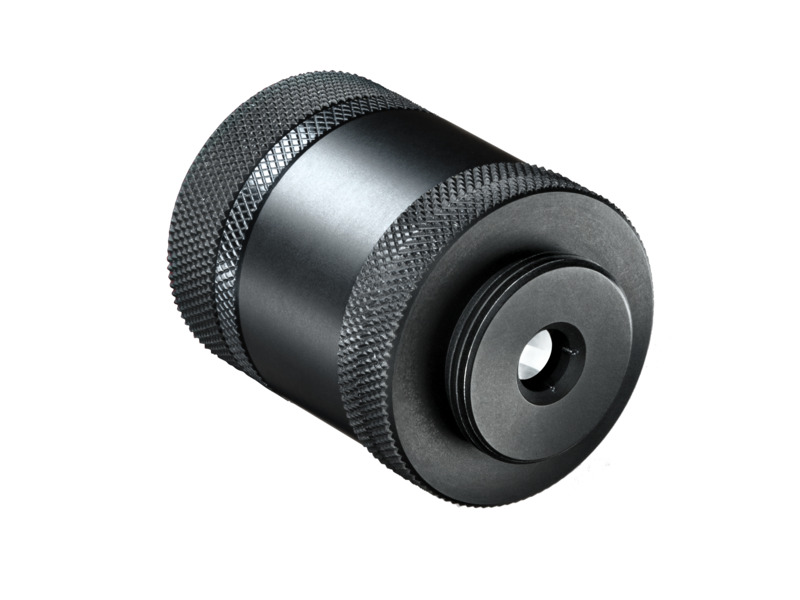

		SPZ17022 4X Reimaging Beam Expander Beam Expander, 4X, C-mount, 340-1800 nm $1,060 In Stock	SPZ17022 4X Reimaging Beam Expander Beam Expander, 4X, C-mount, 340-1800 nm	UNIVERSAL	0.0	1.0	0.0		0.0	In Stock		$1,060		Ophir

Show All

Specifications

Interface

C-mount
Spectral Range

340-1800 nm

Expansion Ratio

4X
Assembly Length

50 mm

Accessories

Description	Compatibility	Avail.	Price
SPZ17019 UV Converter, 193-360 nm to Visible, 4X Beam Expander	UNIVERSAL	In Stock	$983
SPZ08261 Spacer Assembly, 6X/12X/22X Objective to CS-mount Camera	UNIVERSAL	In Stock	$357
SPZ17027 Beam Splitter, 190-2500 nm, 4X Beam Expander	UNIVERSAL	In Stock	$685
SPZ17026 2nd Wedge Beam Splitter, Ø15 mm, 193-2500 nm	UNIVERSAL	Contact Us	$744
LBS-300s Beam Splitter for Laser Beam Profilers	UNIVERSAL			Learn More
