Overview

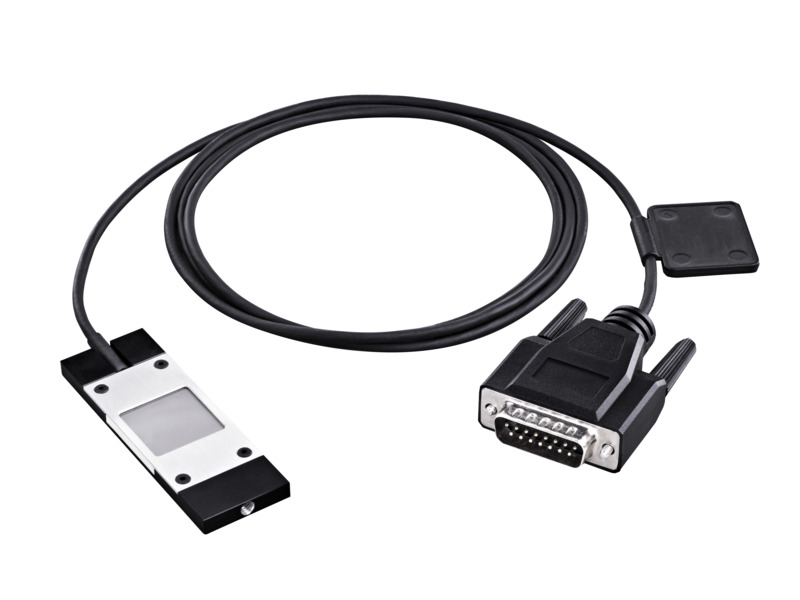

The PD300-MS microscope slide power sensor measures optical power at the sample plane of a microscope. The silicon photodiode measures from 350-1100 nm at optical powers ranging from 3 µW to 1 W and is designed for the needs of fluorescence excitation measurements. The thin power sensor has a footprint of 76.0 x 25.2 mm matching that of a standard microscope slide. The sensing area is sealed and cleanable, allowing it to easily measure the output of high NA objectives that use immersion medium such as water / oil / glycerol as well as in air.

Measurement of optical intensity after the microscope objective
Low angular dependence for high N.A. objectives
Can be used with air, water or oil immersion objectives

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Aperture Size	Spectral Range	Maximum Average Power	Response Time	Availability	Featured Item	Price		Brand
		7Z02482 PD300-MS Microscope Slide Photodiode Power Sensor, 3 µW to 1 W, 18x18 mm, 350-1100 nm $1,907 In Stock	7Z02482 PD300-MS Microscope Slide Photodiode Power Sensor, 3 µW to 1 W, 18x18 mm, 350-1100 nm	UNIVERSAL	0.0	1.0	0.0		0.0	18 x 18 mm	350-1100 nm	1000 mW	0.2 s	In Stock		$1,907		Ophir

Show All

Specifications

Aperture Size

18 x 18 mm
Material

Silicon
Spectral Range

350-1100 nm
Power Range

3 μW to 1 W
Maximum Average Power Density

20 W/cm²
Response Time

0.2 s

Cable Length

1.5 m
Dimensions

76 x 25 x 2.5 mm (LxWxD)
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Features

Microscope Slide Power Meter Overview

The PD300-MS Microscope Slide Power Meter lets you accurately measure the exact amount of light applied to a specimen, so experimental results across different equipment can be objectively compared.

Measuring Very Low Laser Powers with a Photodiode Sensor

In this short “Basics” video, we review in general the use of photodiode sensors for measuring very low laser powers.

Frequently Asked Questions

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

How can I measure light coming out of an oil immersion objective?
Answer
This is easy with the PD300-MS all you need to do is place a drop of oil on the center of the sensor surface and immerse the objective lens in it. After measurement just wipe down the sensor and clean it for another use.

The area of the sensor is large, can I measure light at any point on it?
Answer

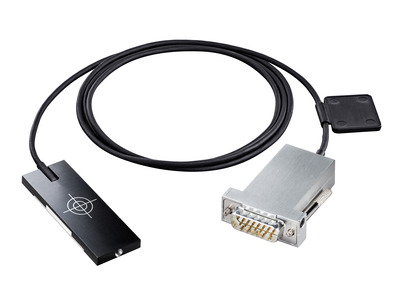

The sensor is large in order to 'catch' light coming out of the objective at large angles, it is most accurate when the light is centered on the surface – you should use the target on the backside of the sensor to position the sensor optimally.
