The SupIR 100mm f/1.6 manual focus LWIR imaging lens has a 100 mm focal length with an f-number of 1.6. This single field of view lens (1-FOV) is designed for high definition format uncooled LWIR cameras.

Advanced technologies for the highest performance long wave focal planes
LWIR Hard-carbon AR coating for 8-12 µm
Passive athermalization with the highest imaging performance from -40 to +80°C
Compatible with 12 & 17 μm pixel pitch, 1024x768 XGA format LWIR cameras
Providing superior performance from 400 m out to infinity
Cost-effective solution for high-resolution thermal imaging and sensing

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Coating Type	Avg.Trns.	Availability	Featured Item	Price		Brand
		680121-004 SupIR 100mm f/1.6 LWIR 1-FOV Manual Lens, SupIR, 100 mm Focal Length, f/1.6, Hard Carbon, HD Contact Us	680121-004 SupIR 100mm f/1.6 LWIR 1-FOV Manual Lens, SupIR, 100 mm Focal Length, f/1.6, Hard Carbon, HD	UNIVERSAL	0.0	1.0	0.0		0.0	Hard Carbon	88%	Contact Us

Show All

	Format
Pitch	320x240	384x288	640x480	1024x768
17 µm	3.1°	3.7°	6.2°	9.8°
12 µm	2.2°	2.6°	4.4°	7.0°

Specifications

Type

Single Field of View
Focal Length

100 mm
F/#

1.6
Coating Type

Hard Carbon
Spectral Range

8-12 μm
Avg.Trns.

88%
Back Focal Length

21.33 mm in air

Focus Mechanism

Manual
Focus Range

3 m to infinity
Depth of Field

400 m to infinity
Operating Temperature Range

-40°C to +80°C
Storage Temperature Range

-55°C to +85°C
Sealing

IP 67 front element only
Wavelength Region

LWIR

Features

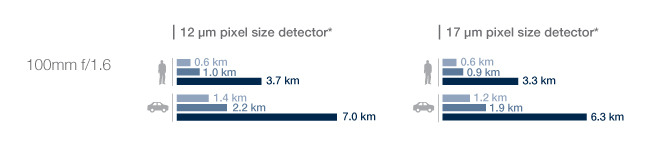

SupIR 100 mm f/1.6 Detection, Recognition & Identification (DRI) Range

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!

The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:

Detection: An object is present – 2 pixels on target (Lower Bar)
Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)

High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
