High Power OEM Thermopile Sensor

Compare	Model	Compatibility	rankScore		Maximum Average Power	Aperture Size	Communication	Minimum Power	Spectral Range	Availability

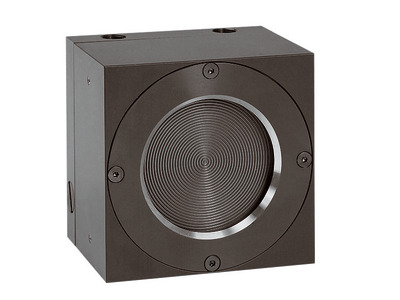

L250W-UAF L250W-UAF OEM Thermopile Power Sensor, 0.3-250 W, 50 mm, 0.19-20 µm, Water-Coooled, RS232 Contact Us	L250W-UAF L250W-UAF OEM Thermopile Power Sensor, 0.3-250 W, 50 mm, 0.19-20 µm, Water-Coooled, RS232	UNIVERSAL	1.0	1.0	250 W water cooled free standing	Ø50 mm	RS232, Analog	300 mW	0.19-20 µm	Contact Us
L250W-UAU L250W-UAU OEM Thermopile Power Sensor, 0.3-250 W, 50 mm, 0.19-20 µm, Water-Coooled, USB Contact Us	L250W-UAU L250W-UAU OEM Thermopile Power Sensor, 0.3-250 W, 50 mm, 0.19-20 µm, Water-Coooled, USB	UNIVERSAL	1.0	2.0	250 W water cooled free standing	Ø50 mm	USB	300 mW	0.19-20 µm	Contact Us
L250W-UAE L250W-UAE OEM Thermopile Power Sensor, 0.3-250 W, 50 mm, 0.19-20 µm, Water-Coooled, Ethernet Contact Us	L250W-UAE L250W-UAE OEM Thermopile Power Sensor, 0.3-250 W, 50 mm, 0.19-20 µm, Water-Coooled, Ethernet	UNIVERSAL	1.0	3.0	250 W water cooled free standing	Ø50 mm	Ethernet	300 mW	0.19-20 µm	Contact Us

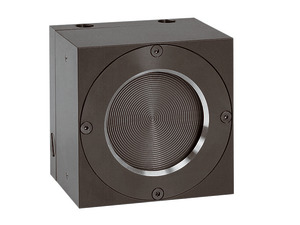

L300W-UAF L300W-UAF OEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-20 µm, Water-Coooled, RS232 Contact Us	L300W-UAF L300W-UAF OEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-20 µm, Water-Coooled, RS232	UNIVERSAL	1.0	4.0	300 W water cooled free standing	Ø50 mm	RS232, Analog	500 mW	0.19-20 µm	Contact Us
L300W-UAU L300W-UAU OEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-20 µm, Water-Coooled, USB Contact Us	L300W-UAU L300W-UAU OEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-20 µm, Water-Coooled, USB	UNIVERSAL	1.0	5.0	300 W water cooled free standing	Ø50 mm	USB	500 mW	0.19-20 µm	Contact Us
L300W-UAE L300W-UAE OEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-20 µm, Water-Coooled, Ethernet Contact Us	L300W-UAE L300W-UAE OEM Thermopile Power Sensor, 0.5-300 W, 50 mm, 0.19-20 µm, Water-Coooled, Ethernet	UNIVERSAL	1.0	6.0	300 W water cooled free standing	Ø50 mm	Ethernet	500 mW	0.19-20 µm	Contact Us

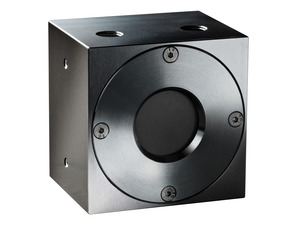

600W-UAF 600W-UAF OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, RS232 Contact Us	600W-UAF 600W-UAF OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, RS232	UNIVERSAL	1.0	7.0	600 W water cooled free standing	Ø26 mm	RS232, Analog	5 W	350-2200 nm	Contact Us

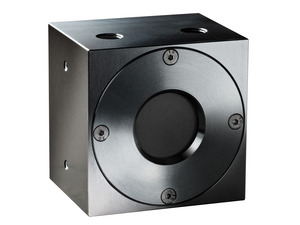

600W-UAU 600W-UAU OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, USB Contact Us	600W-UAU 600W-UAU OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, USB	UNIVERSAL	1.0	8.0	600 W water cooled free standing	Ø26 mm	USB	5 W	350-2200 nm	Contact Us
600W-UAE 600W-UAE OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, Ethernet Contact Us	600W-UAE 600W-UAE OEM Thermopile Power Sensor, 5-600 W, 26 mm, 350-2200 nm, Water-Coooled, Ethernet	UNIVERSAL	1.0	9.0	600 W water cooled free standing	Ø26 mm	Ethernet	5 W	350-2200 nm	Contact Us

Show All

Features

OEM Laser Power Meter and Sensor

In this video, Jimmy Green, Ophir OEM Specialist, explains how Ophir can solve laser measurement challenges if a solution cannot be found from the hundreds of products in our catalog.

Cooling of OEM Sensors: Heat Sinking

Many of Ophir’s OEM power sensors have a maximum average power specification of “XX watts free standing, YY watts heat sinked.” In this video, you will learn some guidelines for making sure that a sensor has been provided with proper heat sinking so it does not get damaged.

Customized OEM Sensors with Ethernet Interface

Do you need to integrate a customized sensor into your system? Learn about Ophir’s new “UAE” family of sensors with an Ethernet interface, for OEM applications.

Clarifications: Range Selection, Measurement Duration

Sometimes, even experienced users of laser measurement equipment come across some issues that, although basic, need to be clarified. This video reviews 2 such issues: (1) selection of correct range when it's not quite obvious (and what happens if one goes over range), and (2) how long a measurement duration may be.

Frequently Asked Questions

Sensor Finder does not find a match for my application. Is there the possibility to create an OEM sensor for my application?
Answer
Yes, we have the ability to rapid prototype standard OEM sensors to help with custom applications where an off the shelf sensor does not fill the requirement.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

What is the dynamic range of OEM sensors?
Answer
In general, the dynamic range over a given range, i.e. the ratio of maximum useable power to minimum useable power of Ophir thermal OEM sensors is 40:1. If greater dynamic range is desired, Ophir OEM RS232 sensors are available with several selectable ranges.

Frequently Asked Questions

Sensor Finder does not find a match for my application. Is there the possibility to create an OEM sensor for my application?
Answer
Yes, we have the ability to rapid prototype standard OEM sensors to help with custom applications where an off the shelf sensor does not fill the requirement.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

What is the dynamic range of OEM sensors?
Answer
In general, the dynamic range over a given range, i.e. the ratio of maximum useable power to minimum useable power of Ophir thermal OEM sensors is 40:1. If greater dynamic range is desired, Ophir OEM RS232 sensors are available with several selectable ranges.

300 mW to 600 W OEM Thermopile Laser Power Sensors

300 mW to 600 W OEM Thermopile Laser Power Sensors
