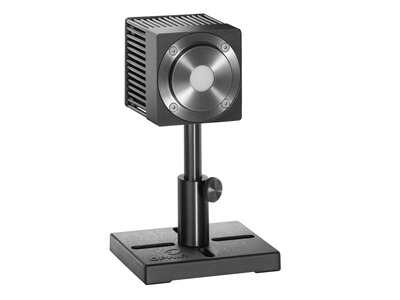

High Peak Power 50 W Thermopile Sensor with 17.5 mm Aperture and Diffuser

Products
Features
FAQS
Accessories
Resources
Contact Us

Overview

The 50A-PF-DIF-18 is a thermal power/energy laser measurement sensor for high peak power pulsed lasers with a diffuser. It has a 17.5 mm aperture and can measure from 140 mW to 50 W and from 60 mJ to 200 J. It has a damage threshold of up to 4 J/cm² for ns pulses and covers the spectral range from 240 to 2200 nm.

PF type 240-2200 nm high energy density absorber with diffuser
140 mW to 50 W average power measurement
60 mJ to 200 J pulse energy measurement
240 to 2200 nm spectral range

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Absorber Type	Aperture Size	Minimum Power	Maximum Average Power	Availability	Featured Item	Price		Brand
		7Z02738 50A-PF-DIF-18 Thermal Laser Power Sensor, PF Type, 140 mW to 50 W, Ø17.5 mm, 240-2200 nm $1,812 2 Weeks	7Z02738 50A-PF-DIF-18 Thermal Laser Power Sensor, PF Type, 140 mW to 50 W, Ø17.5 mm, 240-2200 nm	UNIVERSAL	0.0	1.0	0.0		0.0	PF - High peak power	Ø17.5 mm	140 mW	50 W	2 Weeks		$1,812		Ophir

Show All

Specifications

Product Name

50A-PF-DIF-18
Absorber Type

PF - High peak power
Diffuser

Yes
Aperture Size

Ø17.5 mm
Spectral Range

240 to 2200 nm
Minimum Power

140 mW
Maximum Average Power

50 W
Minimum Pulse Energy

60 mJ
Maximum Pulse Energy

200 J
Response Time

2 s

Maximum Average Power Density

>10 kW/cm²
Maximum Energy Density <100 ns

4 J/cm²
Maximum Energy Density 2 ms

50 J/cm²
Cooling

Convection
Dimensions

64 x 64 x 75 mm (LxWxD)
Cable Length

1.5 m
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Features

Choosing a Thermal Sensor

In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.

Sensors for Measuring Laser Power

In this short "Basics" video we review in general how one goes about measuring laser beam power, so that you'll have a clear understanding of what the different sensor types are, and when to use each type.

Thermal Power Sensor Accuracy

Ophir former CTO Dr. Ephraim Greenfield discusses the various factors that contribute to uncertainties in measurement when using Ophir laser power and energy meters.

Effects of Incidence Angle on Measurements

In this video, you will learn to what degree a beam’s incidence angle matters, and for which sensor types this should be taken into account.

Thermal Sensor Calibration

As the spectral sensitivity of the absorber used for the power and energy measurement is not fully linear, Ophir sensors get a high precision calibration by default with more than one wavelength.

Each thermal sensor is calibrated independently of a particular Ophir power meter with its calibration information contained in the DB15 plug. When the sensor is connected to the meter, the meter reads and interprets this information to display a calibrated reading. Each power meter is calibrated independently and has the same sensitivity as an other meter within about 2 tenths of a percent.

Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

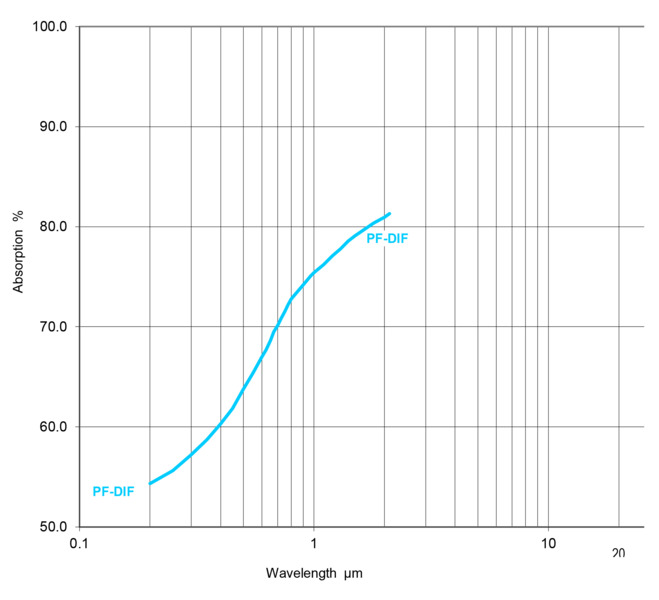

Absorption of different thermal sensor absorber types

Frequently Asked Questions

Must I use a particular sensor only with the meter it was ordered with?
Answer
Ophir meters and sensors are calibrated independently. Each meter has the same sensitivity as the other within about 2 tenths of a percent. Each sensor is calibrated independently of a particular meter with its calibration information contained in the DB15 plug. When the sensor is connected to the meter, the meter reads and interprets this information. Since the accuracy of our sensors is typically +/-3%, the extra 0.2% error that could come from plugging into a different meter is negligible and therefore it does not matter which calibrated meter we use with a particular calibrated sensor.

How should I clean my sensor?
Answer
First, clean the absorber surface with a tissue, using Umicore #2 Substrate Cleaner, acetone or methanol. Then dry the surface with another tissue. Please note that a few absorbers (Pyro-BB, 10K-W, 15K-W, 16K-W and 30K-W) cannot be cleaned with this method. Instead, simply blow off the dust with clean air or nitrogen. Don't touch these absorbers. Also, HE sensors (such as the 30(150)A-HE-17) should not be cleaned with acetone.

Note: These suggestions are made without guarantee. The cleaning process may result in scratching or staining of the surface in some cases and may also change the calibration.

When an accuracy spec is given, what exactly is meant?
Answer
The Ophir specification on accuracy is in general 2 sigma standard deviation. This means, for instance, that if we list the accuracy as +/-3%, this means that 95% of the sensors will be within this accuracy and 99% will be within +/-4%. For further information on accuracy see calibration procedure tutorial.

How do you calculate the power and energy density of a laser beam?
Answer
If the power is P and the diameter of the beam is D then the power density is P /(.785 * D²) . If it is a pulsed laser and the energy is E, the repetition rate is R and the diameter is D then the power density is E*R/(.785 * D²), The energy density is E/(.785 * D²). The sensor finder will automatically calculate the power and energy density.

If according to the catalog specs or the sensor finder I am very close to the damage threshold but below it, should I choose such a sensor?
Answer
It is not recommended to choose a sensor if it is very close to the damage threshold if there is an alternative, since laser damage is not an exact figure and depends on many things. Use the Sensor Finder to find the best match where you are preferably below 50% of the damage threshold.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

How is the performance of thermal sensors affected by ambient temperature?
Answer
Water cooled sensors will hardly be affected by ambient temperature since the sensor temperature is determined by the water temperature. Ophir convection and fan cooled sensors are designed to operate in an ambient environment of 25°C up to the maximum rated power continuously. When operating at its maximum rated power, the sensor’s body should typically not exceed about 80°C in temperature.
Note: If the room temperature is higher than 25°C, then the maximum power (at which the sensor can be safely operated) should be derated accordingly from the specified maximum (since dissipation of the heat from inside the sensor to the surrounding air will be more difficult). For example, if the room temperature is 35°C, then the maximum power limit should be (80-35)/(80-25) = 82% of maximum rated power as given in the sensor’s spec.

Does the damage threshold depend on power level?
Answer
The damage threshold of thermal sensors does depend on the power level and not only the power density because the sensor disc itself gets hotter at high powers. For instance, the damage threshold of the Ophir broadband coating may be 50KW/cm2 at 10 Watts but only 10KW/cm2 at 300W. The Ophir specifications for damage threshold are always given for the highest power of use of a particular sensor, something which is not done by most other manufacturers. This should be taken into account when comparing specifications. The Sensor Finder takes the power level into consideration when calculating damage threshold.

Frequently Asked Questions

Must I use a particular sensor only with the meter it was ordered with?
Answer
Ophir meters and sensors are calibrated independently. Each meter has the same sensitivity as the other within about 2 tenths of a percent. Each sensor is calibrated independently of a particular meter with its calibration information contained in the DB15 plug. When the sensor is connected to the meter, the meter reads and interprets this information. Since the accuracy of our sensors is typically +/-3%, the extra 0.2% error that could come from plugging into a different meter is negligible and therefore it does not matter which calibrated meter we use with a particular calibrated sensor.

How should I clean my sensor?
Answer
First, clean the absorber surface with a tissue, using Umicore #2 Substrate Cleaner, acetone or methanol. Then dry the surface with another tissue. Please note that a few absorbers (Pyro-BB, 10K-W, 15K-W, 16K-W and 30K-W) cannot be cleaned with this method. Instead, simply blow off the dust with clean air or nitrogen. Don't touch these absorbers. Also, HE sensors (such as the 30(150)A-HE-17) should not be cleaned with acetone.

Note: These suggestions are made without guarantee. The cleaning process may result in scratching or staining of the surface in some cases and may also change the calibration.

When an accuracy spec is given, what exactly is meant?
Answer
The Ophir specification on accuracy is in general 2 sigma standard deviation. This means, for instance, that if we list the accuracy as +/-3%, this means that 95% of the sensors will be within this accuracy and 99% will be within +/-4%. For further information on accuracy see calibration procedure tutorial.

How do you calculate the power and energy density of a laser beam?
Answer
If the power is P and the diameter of the beam is D then the power density is P /(.785 * D²) . If it is a pulsed laser and the energy is E, the repetition rate is R and the diameter is D then the power density is E*R/(.785 * D²), The energy density is E/(.785 * D²). The sensor finder will automatically calculate the power and energy density.

If according to the catalog specs or the sensor finder I am very close to the damage threshold but below it, should I choose such a sensor?
Answer
It is not recommended to choose a sensor if it is very close to the damage threshold if there is an alternative, since laser damage is not an exact figure and depends on many things. Use the Sensor Finder to find the best match where you are preferably below 50% of the damage threshold.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

How is the performance of thermal sensors affected by ambient temperature?
Answer
Water cooled sensors will hardly be affected by ambient temperature since the sensor temperature is determined by the water temperature. Ophir convection and fan cooled sensors are designed to operate in an ambient environment of 25°C up to the maximum rated power continuously. When operating at its maximum rated power, the sensor’s body should typically not exceed about 80°C in temperature.
Note: If the room temperature is higher than 25°C, then the maximum power (at which the sensor can be safely operated) should be derated accordingly from the specified maximum (since dissipation of the heat from inside the sensor to the surrounding air will be more difficult). For example, if the room temperature is 35°C, then the maximum power limit should be (80-35)/(80-25) = 82% of maximum rated power as given in the sensor’s spec.

Does the damage threshold depend on power level?
Answer
The damage threshold of thermal sensors does depend on the power level and not only the power density because the sensor disc itself gets hotter at high powers. For instance, the damage threshold of the Ophir broadband coating may be 50KW/cm2 at 10 Watts but only 10KW/cm2 at 300W. The Ophir specifications for damage threshold are always given for the highest power of use of a particular sensor, something which is not done by most other manufacturers. This should be taken into account when comparing specifications. The Sensor Finder takes the power level into consideration when calculating damage threshold.

Accessories

Thermal Sensor Cables

Order a different length cable along with sensor to receive a different cable than the standard 1.5 m cable.

Description	Compatibility	Avail.	Price
7E01122A Thermal Sensor Cable, 3 m Length, Connect to Power Meter	UNIVERSAL	In Stock	$112
7E01122B Thermal Sensor Cable, 5 m Length, Connect to Power Meter	UNIVERSAL	In Stock	$112
7E01122C Thermal Sensor Cable, 10 m Length, Connect to Power Meter	UNIVERSAL	In Stock	$167
7E01122D Thermal Sensor Cable, 12 m Length, Connect to Power Meter	UNIVERSAL	In Stock	$167

Sensor Connector to BNC Adapter

The SH to BNC Adapter allows the connection of an Ophir sensor to a current or voltage measuring device for measurement of the raw sensor analog output. A current meter should be used for photodiode sensors. Current or voltage meters can be used for thermal sensors.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		7Z11010 BNC Adapter, DB15 Optical Sensor Connector	UNIVERSAL		In Stock	$92

Extended Warranty for Sensor

Customers that purchase the above items also consider the following items. Ophir-Spiricon meters and sensors include a standard manufacturers warranty for one year. Add a one year Extended Warranty to your meter or sensor, which includes one recalibration.
