Beam Expanding Microscope Objective, 22X, 4.5 mm Recess & CS-mount Cameras

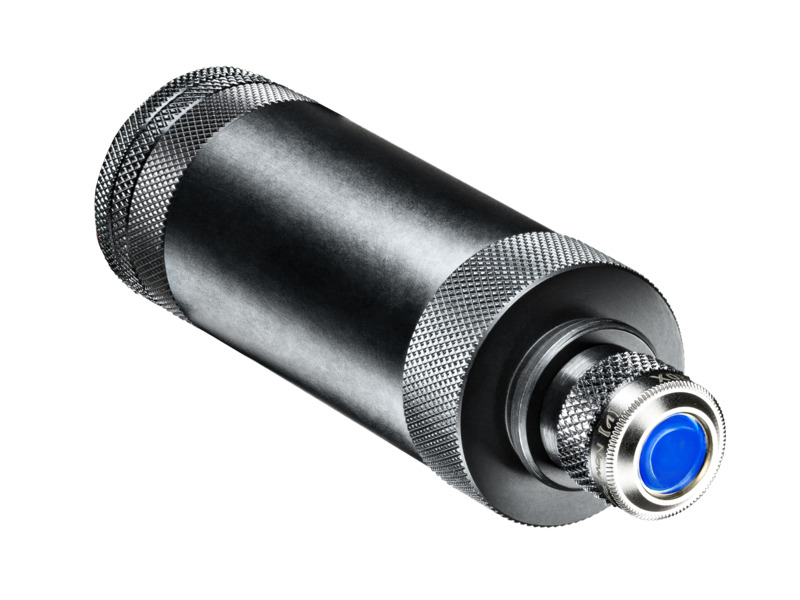

22X expanding microscope objective

Model: SPZ08260

$1,288

In Stock

Compare

Add to List

Product Series Overview

Microscope Objectives for Beam Profilers

Beam Expanding Microscope Objective, 22X, 4.5 mm Recess & CS-mount Cameras

The SPZ08260 microscope objective is used for 22X expanding the a beam. The various expanders allow the use of our ND1, ND2 and ND3 filters as well as the variable attenuator so as to accommodate the camera to a wide range of source intensities.

Specifications

Technical Specs

Interface

C-mount
Expansion Ratio

22X
Assembly Length

102 mm

Spectral Range

530-1100 nm

Interface

C-mount
Expansion Ratio

22X
Assembly Length

102 mm

Spectral Range

530-1100 nm

Resources & Downloads

Data Sheets

Beam Expanders Datasheet (364 kB, PDF)

Technical Notes

6x 12x 22x Expanding Microscope Objectives (420.2 kB, PDF)
