BeamGage Professional software

  • Product Name

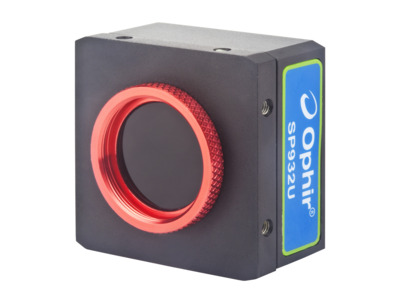

    BGP-USB3-SP932U
  • Spectral Range
    190-1100 nm
  • Beam Size
    34.5μm 5.3mm
  • Communication Interface
    USB 3.0
  • Sensor Type
    Silicon CMOS
  • Compatible Light Sources
    CW, Pulsed
  • Active Area
    7.06mm x 5.3mm
  • Elements
    2048 x 1536
  • Effective Pixel Pitch
    3.45μm x 3.45μm
  • Dynamic Range
    72 dB
  • Full Resolution Frame Rate
    24fps
  • Saturation Intensity
    32μW/cmᒾ at 633nm, 500μW/cmᒾ at 1064nm
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes
