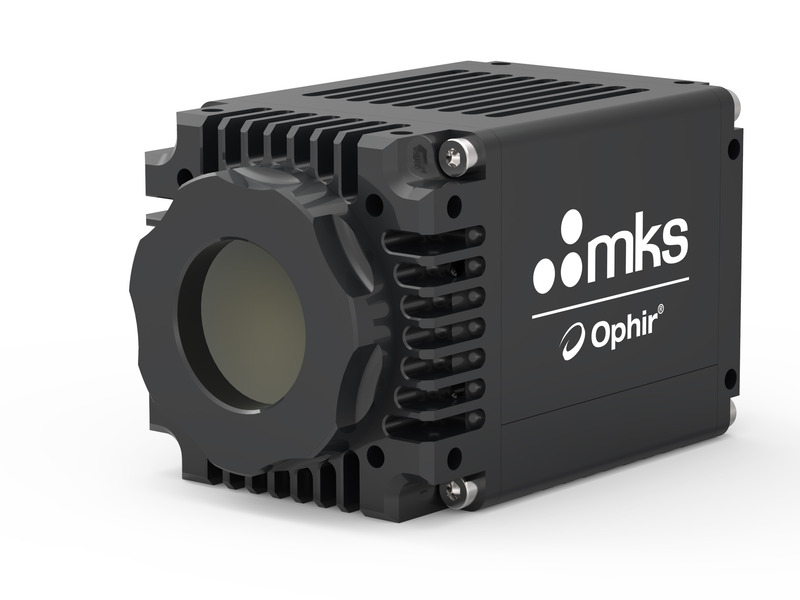

SP1201 Laser Beam Profiler, 320x256 px, 60 Hz, 900-1700 nm, GigE, BeamGage Pro

  • Spectral Range
    900-1700 nm
  • Beam Size
    300 µm - 7.4 mm
  • Sensor Type
    InGaAs
  • Compatible Light Sources
    CW, Pulsed
  • Active Area
    9.6 x 7.6 mm
  • CCD Recess
    17.5 mm
  • Elements
    320 x 256
  • Effective Pixel Pitch
    30 μm
  • Dynamic Range
    59 dB
  • Full Resolution Frame Rate
    60 fps
  • Saturation Intensity
    0.4 μW/cm2 @ 1064 nm
    0.2 μW/cm2 @ 1550 nm
  • Software
    Not included
  • CE Compliance
    Yes
  • UKCA Compliance
    Yes
  • China RoHS Compliance
    Yes
  • Communication
    GigE
