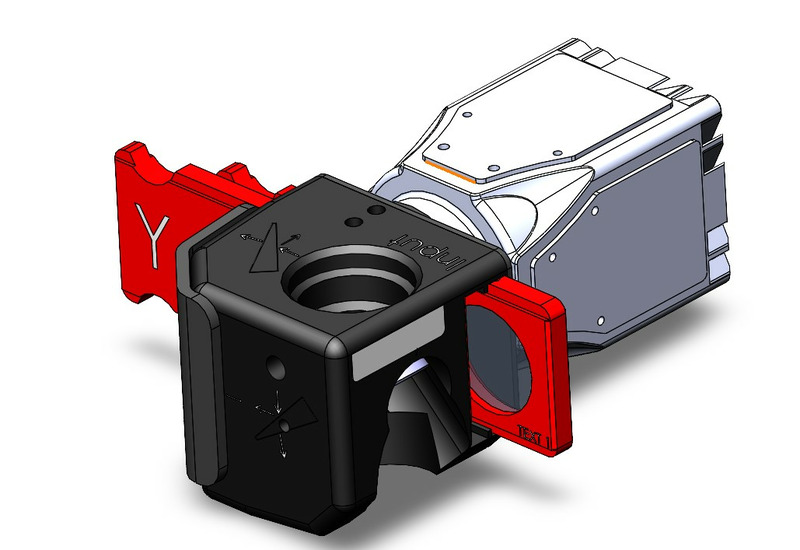

Laser Focal Spot Analyzer, 190-2500 nm, BeamGage Standard

BGS-LBS-300s-BB-CAL-LT665

Model: SP90480

5 Weeks

Compare

Add to List

Product Series Overview

Laser Focus Spot Analyzer Beam Profilers

Laser Focal Spot Analyzer, 190-2500 nm, BeamGage Standard

The BGS-LBS-300s-BB-CAL-LT665 focal spot analyzer (P/N SP90480) measures laser beam power distribution and focal spot size for wavelengths from 190 to 2500 nm. The average power can be from <1 to 400 Watts and the focal spot can be as small as 46 µm. The FSA can also be used to measure how the focal spot shifts with power during its critical start-up phase. BeamGage Standard software is included.

Specifications

Technical Specs

Spectral Range

190-2500 nm
Beam Size

46μm - 9.9mm
Communication

USB 3.0
Sensor Type

Silicon CCD
Compatible Light Sources

CW, Pulsed
Active Area

12.5mm x 10mm
Elements

2752 x 2192
Effective Pixel Pitch

4.54 μm

Dynamic Range

56 dB
Full Resolution Frame Rate

27 fps
Software

BeamGage Standard
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Spectral Range

190-2500 nm
Beam Size

46μm - 9.9mm
Communication

USB 3.0
Sensor Type

Silicon CCD
Compatible Light Sources

CW, Pulsed
Active Area

12.5mm x 10mm
Elements

2752 x 2192
Effective Pixel Pitch

4.54 μm

Dynamic Range

56 dB
Full Resolution Frame Rate

27 fps
Software

BeamGage Standard
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Resources & Downloads

Data Sheets

Focal Spot Analyzer Datasheet (238.2 kB, PDF)

Drawings & CAD

LBS-300s-CAL Drawing (432.3 kB, PDF)
