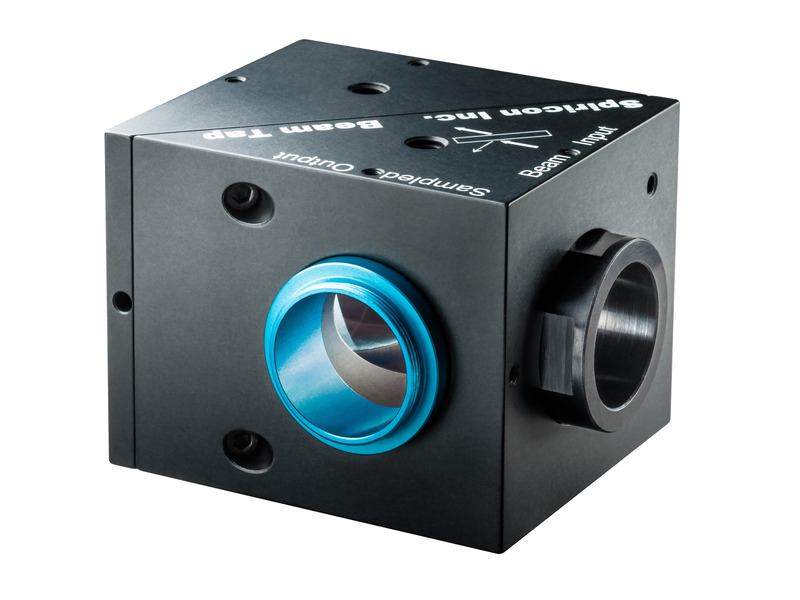

Beam Tap Beam Sampling System, Single Surface, 1 UVFS Cube,400-700 nm

BT-I

Model: SP90135

$1,039

7 Weeks

Compare

Add to List

Product Series Overview

Beam Tap I & II Dual Surface Reflectors

Beam Tap Beam Sampling System, Single Surface, 1 UVFS Cube,400-700 nm

The SP90135 Beam Tap beam sampling system is a single surface laser beam sampler with 1 UV fused silica cube for 400 to 700 nm wavelengths. The rear surface is AR coated to maximize the throughput of the main beam.

Specifications

Technical Specs

Spectral Range

400-700 nm
Reflection

4% Ravg
Damage Threshold

1 MW/cm² CW, 1 MJ/cm² pulsed
Material

UV-Grade Fused Silica

Clear Aperture

Ø20 mm
Interface

C-mount

Spectral Range

400-700 nm
Reflection

4% Ravg
Damage Threshold

1 MW/cm² CW, 1 MJ/cm² pulsed
Material

UV-Grade Fused Silica

Clear Aperture

Ø20 mm
Interface

C-mount

Resources & Downloads

Data Sheets

Beam Tap I & ll Datasheet (247.9 kB, PDF)

Drawings & CAD

Beam Tap Drawing (259.9 kB, PDF)
