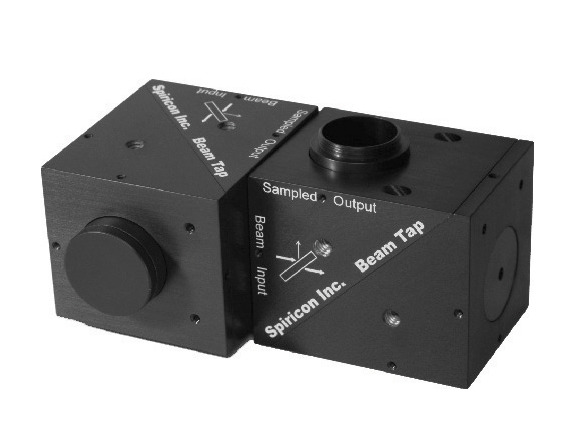

Beam Tap Beam Sampling System, Dual Surface, 2 UVFS Cubes, 400-700 nm

BT-II

Model: SP90133

$1,394

7 Weeks

Compare

Add to List

Product Series Overview

Beam Tap I & II Dual Surface Reflectors

Beam Tap Beam Sampling System, Dual Surface, 2 UVFS Cubes, 400-700 nm

The SP90133 Beam Tap beam sampling system is a dual surface laser beam sampler with two UV fused silica cubes for 400 to 700 nm wavelengths. The rear surface is AR coated to maximize the throughput of the main beam.

Specifications

Technical Specs

Spectral Range

400-700 nm
Reflection

0.16% Ravg
Damage Threshold

1 MW/cm² CW, 1 MJ/cm² pulsed
Material

UV-Grade Fused Silica

Clear Aperture

Ø20 mm
Interface

C-mount

Spectral Range

400-700 nm
Reflection

0.16% Ravg
Damage Threshold

1 MW/cm² CW, 1 MJ/cm² pulsed
Material

UV-Grade Fused Silica

Clear Aperture

Ø20 mm
Interface

C-mount

Resources & Downloads

Data Sheets

Beam Tap I & ll Datasheet (247.9 kB, PDF)

Drawings & CAD

Beam Tap Drawing (259.9 kB, PDF)
