  6. L150C-UAE

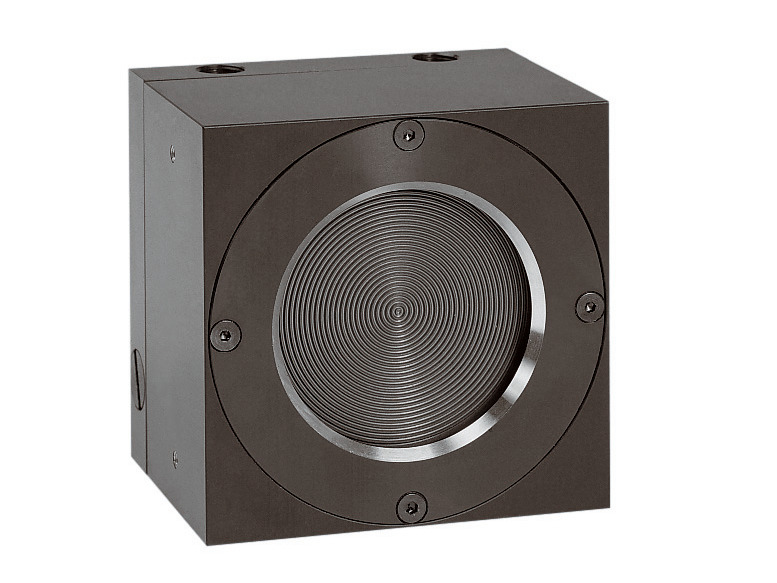

OEM Thermopile Power Sensor, 0.2-20/150 W, 50 mm, 0.19-20 µm, Ethernet

  • Spectral Range
    0.19-20 µm
  • Maximum Average Power
    150 W heat sinked
  • Maximum Average Power Density
    12 kW/cm² at 150 W
  • Minimum Power
    200 mW
  • Maximum Pulse Energy
    100 J
  • Maximum Energy Density <100 ns
    0.3 J/cm²
  • Maximum Energy Density 2 ms
    10 J/cm²
  • Minimum Pulse Energy
    80 mJ
  • Response Time
    2.5 s
  • Communication
    Ethernet
  • Aperture Size
    Ø50 mm
  • Dimensions
    80 x 80 x 45 mm (LxWxD)
  • RoHS Compliance
    Yes
  • China RoHS Compliance
    Yes
