Compare Model Drawings, CAD & Specs Diameter Edge Thickness Coating Type OEM Compatibility Availability Price
61792
Contact Us
 61792 1.97 in. 25 mm ZPS Amada, Precitec
Contact Us
630496-117
Contact Us
 630496-117 2.756 in. 25 mm ZPS Finn Power
Contact Us
630631-117
Contact Us
 630631-117 2.0 in. 54 mm ZPS Balliu
Contact Us
631062-115
Contact Us
 631062-115 2.68 in. 34 mm ZPS
Contact Us
631181-117
Contact Us
 631181-117 80 x 60 mm 20 mm ZPS
Contact Us
631369-117
Contact Us
 631369-117 2.756 in. 25 mm ZPS-HR JFY
Contact Us
631520-117
Contact Us
 631520-117 2.25 in. 31.75 mm ZPS
Contact Us

Features

Zero Phase Shift Mirrors

In most laser machines, one or several mirrors are used to forward the laser beam from the cavity to the working head. Usually, each mirror deflects the laser beam at an angle of 90°, corresponding to an angle of incidence of 45°. At these mirrors, reflectance should be as high as possible in order to minimize loss of laser power. In addition, phase shift between the s- and p-polarized components of the reflected beam should be as low as possible in order to avoid disturbing the polarization of the laser beam. Mirrors with such properties are called zero-phase mirrors

High Thermal Conductivity Copper Substrate

In order to optimize function of these mirrors, different substrate materials are used - the most common ones are silicon (Si) and copper (Cu). Silicon mirrors have light weight and are therefore preferred in flying optics where high accelerations are needed. Copper has high thermal conductivity, and channels for cooling water can be included directly into the CO2 laser mirrors. Therefore, copper mirrors are preferred if best-possible cooling is important, for example in CO2 laser machines with very high laser power.

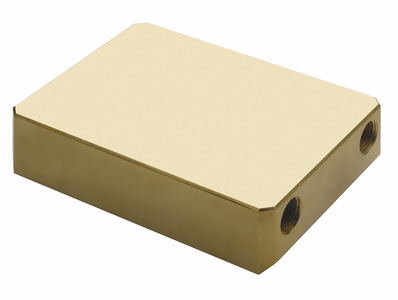

Water Cooled for High Power Lasers

As the output power of the CO2 laser is getting higher throughout the years, the technical demands and damage threshold the CO2 laser optics need to withstand is more challenging. As a solution to those challenges optics manufacturers added cooling system to the CO2 laser Cu mirror, by that the mirror will be less inclined to thermal expansion, and a proper cooling of the optical surface is ensured. The cooling of the CO2 laser optic surface is achieved by drilling of channels close to the surface, by that there is less damage to the coating as in is exposed to less heat. This drilling is not applicable to Si mirrors due to the brittleness of the material.

Zero Phase Shift Mirror Coatings

The optical properties of a mirror (reflectance, phase shift, etc.) are determined by its coating. In order to realize different mirror functions, different coatings are needed.

The new Zero Phase Shift High Reflection (ZPS-HR) coating features lower absorption by 40% compared to standard ZPS/TRZ coating. Maximum absorption of the ZPS-HR version coating is 0.3%, an improvement to the standard ZPS absorption level of 0.5%.

MMR-P coating can be used for zero phase shift mirror or cavity optics, and allows for the highest total random polarization reflection available. It can also be applied to a level-changing mirror in two-tiered resonator systems. Our MMR-P coating keeps the same capabilities of phase shift and high reflection of visible light to enable clear observation of HeNe laser or diode laser beam reflection for alignment, location indication, etc.

Coating Substrate %R@45°@10.6 %S-Pol@45°@10.6 %P-Pol@45°@10.6 %R@45° Phase Shift@45°
ZPS Si&Cu 99.5% - - ≥80%@630-670 nm 0°±2°
ZPS-HR Si 99.7% 99.8% 99.6% ≥80%@630-670 nm 0°±2°
MMR-P Si&Cu ≥55%@900-1000 nm 0°±2°
