New benchmark for cooled MWIR zoom optics for next-gen cooled MWIR 5μm SXGA detectors

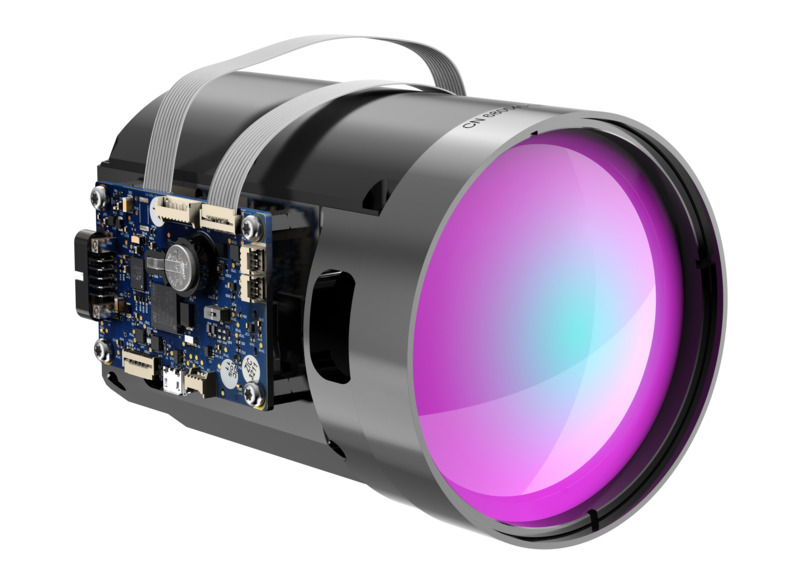

The SupIR 10-135mm f/1.8 is a compact, high-performance MWIR zoom lens optimized for next-gen 1280×1024 SXGA cooled detectors with a 5µm pixel pitch. It delivers superior image clarity, long-range detection, and seamless integration, making it ideal for defense, security, aerospace, and industrial applications.

With 14× continuous zoom and detection beyond 17km for NATO vehicle targets, it ensures precision for surveillance, reconnaissance, UAVs, UGVs, RCWS, and industrial inspection. Its high MTF, athermalized optical design, and rugged coatings provide stability and durability in extreme conditions.

Designed for demanding applications, the lens features a wide field of view of 37.7° and a narrow field of view of 2.67°, with a compact 90mm front diameter, 129mm length, and lightweight 780g design. The SupIR 10-135mm f/1.8 sets a new standard in MWIR zoom optics, pushing the boundaries of thermal imaging with unmatched clarity, extended range, and reliability.

Key features:

Optimized for 1280x1024 resolution, 5μm pixel pitch MWIR cooled detectors
Detection range exceeding 17km, NATO vehicle detection
Continuous zoom lens with 14x zoom ratio
High Modulation Transfer Function (MTF) maximizing image clarity for long-range target detection and thermal contrast enhancement
High-durability coatings for abrasion, humidity, and thermal stability in extreme environments
Athermalized optical design maintaining consistent focus and image stability across wide temperature ranges

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		680540-001 LightIR 10-135mm f/1.8 MWIR Continuous Zoom Lens, SupIR 10-135mm f/1.8, High Durability Contact Us	680540-001 LightIR 10-135mm f/1.8 MWIR Continuous Zoom Lens, SupIR 10-135mm f/1.8, High Durability	UNIVERSAL	0.0	1.0	0.0		0.0	Contact Us				Ophir
		680540-002 LightIR 10-135mm f/1.8 MWIR Continuous Zoom Lens, SupIR 10-135mm f/1.8, Hard Carbon Contact Us	680540-002 LightIR 10-135mm f/1.8 MWIR Continuous Zoom Lens, SupIR 10-135mm f/1.8, Hard Carbon	UNIVERSAL	0.0	1.0	0.0		0.0	Contact Us				Ophir

Show All

WFOV (10mm)

	Format
Pitch	1280x1024
5 µm	2.67º

NFOV (135mm)

	Format
Pitch	1280x1024
5 µm	37.7º

Specifications

Type

Continuous Zoom
Focal Length

10-135mm
F/#

1.8
Cold Stop FPA Distance

12mm
Back Focal Length

21mm in air
Minimum Focus Range

WFOV:5m;NFOV:50m
Nuc (by defocus)

Yes
Focus Mechanism

Motorized. Adjustable
Focus Time

≤1sec.

Zoom Mechanism

Motorized
Zoom Time

≤5 sec.
Weight

780gr
Dimensions

Ø90mm x 129mm
Drive Voltage

12VDC
Communication Interface

RS485; RS422
Operating Temperature Range

-32ºC to +70ºC
Storage Temperature Range

-40ºC to +80ºC
Sealing

IP67 front element only

Features

SupIR 10-135mm f/1.8 Motorized Cont. Zoom MWIR 5μm SXGA Imaging Lenses

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!

The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:

Detection: An object is present – 2 pixels on target (Lower Bar)
Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)
