Sensor Fiber-Optic Adapters

Products
Compatibility
Features
Resources
Contact Us

Overview

These fiber-optic connector adapter mount to Ophir optical sensors to enable fiber-optic power measurment.

Adapt your sensor to measure optical fiber power and energy
ST, SC, FC and SMA versions
Sensor may require an additional interface adapter

Products

Compare	Model	Compatibility	rankScore		Type	Availability	Price	Brand
7Z08226 ST Fiber Connector Adapter, Power and Energy Sensors $264 In Stock	7Z08226 ST Fiber Connector Adapter, Power and Energy Sensors	UNIVERSAL	1.0	1.0	ST	In Stock	$264	Ophir
7Z08227 SC Fiber Connector Adapter, Power and Energy Sensors $302 In Stock	7Z08227 SC Fiber Connector Adapter, Power and Energy Sensors	UNIVERSAL	1.0	2.0	SC	In Stock	$302	Ophir

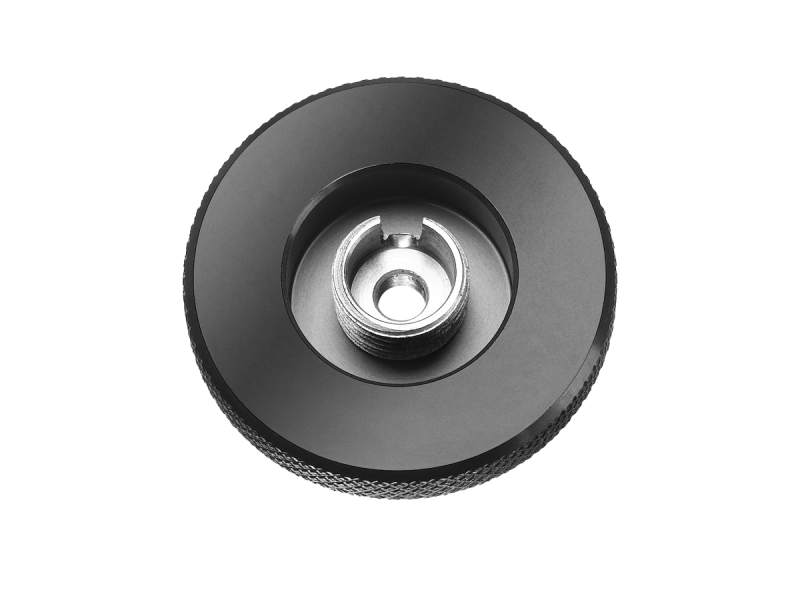

7Z08229 FC Fiber Connector Adapter, Power and Energy Sensors $153 In Stock	7Z08229 FC Fiber Connector Adapter, Power and Energy Sensors	UNIVERSAL	1.0	3.0	FC	In Stock	$153	Ophir
1G01236A SMA Fiber Connector Adapter, Power and Energy Sensors $74 In Stock	1G01236A SMA Fiber Connector Adapter, Power and Energy Sensors	UNIVERSAL	1.0	4.0	SMA	In Stock	$74	Ophir

Show All

A mounting bracket may be needed to mount fibers to sensors. See the compatibility table below to select an adapter bracket and fiber adapter for your sensor.

Photodiode Power Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
PD300R Series	7Z08227	7Z08226	7Z08229	1G01236A	1G02259
FPD Series					not needed
FPS-1					1G02259
3A-IS / 3A-IS-IRG					7Z08213
IS-1-2W					7Z08331
PD300-IRG	N.A.	N.A.	7Z08216	7Z08222	not needed
Thermal Power Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
2A-BB-9 / 3A / 3A-QUAD / 3A-P / 3A-P-QUAD / 3A-PF-12 / 3A-FS / 3A-P-THz	7Z08227	7Z08226	7Z08229	1G01236A	not needed
10A / 10A-PPS / 10A-P					not needed
12A / 12A-P					not needed
30A-BB-18 / 30A-N-18 / 30(150)A-BB-18 / 30(150)A-LP2-18 / F50A-BB-18					7Z08211
50(150)A-BB-26 / 50(150)A-BB-26-PPS / 50(150)A-BB-26-QUAD / F150A-BB-26 / F150A-BB-26-PPS					7Z08210
L50(150)A-BB-35 / L50(150)A-LP2-35 / L50(150)A-PF-35 / FL250A-BB-35 / FL250A-LP2-35					7Z08265
30A-P-17 / 30(150)A-SV-17 / 30(150)A-HE-17					7Z08230
L40(250)A-BB-50 / L40(250)A-LP2-50 / L50(250)A-BB-50					7Z08238
FL250A-BB-50 / FL250A-BB-50-PPS / FL400A-BB-50 / FL400A-LP2-50					7Z08212
L100(500)A-PF-120 / FL600A-BB-65 / FL600A-LP2-65 / 1000WP-BB-34 / 1000W-BB-34 / 1000W-BB-34-QUAD / 1000W-LP2-34 / FL1100A-BB-65 / FL1100A-LP2-65 / L1500W-BB-50 / L1500W-LP2-50 / L2000W-BB-120 / L2000W-PF-120 / 5000W-BB-50 / 5000W-LP2-50 / 5000WP-LP2-50	Consult Ophir representative				Threaded holes exist

Energy Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
PD10-C / PD10-IR-C / PD10-pJ-C / PD10-IR-pJ-C	7Z08227	7Z08226	7Z08229	1G01236A	7Z08275
PE9-C / PE9-ES-C / PE10-C / PE10BF-C / PE25-C / PE25BF-C					7Z08269
PE50-C / PE50BF-C					7Z08270

Features

Measuring beams coming out of a fiber

When you need to measure a beam coming out of a fiber, there are some parameters that might have a somewhat different meaning than they do when referring to "regular" beam measurements. Missing some of these points could lead to incorrect measurement, and possible equipment damage. This video clarifies some issues you'll need to keep in mind so you can set up and perform this measurement correctly.
