Overview

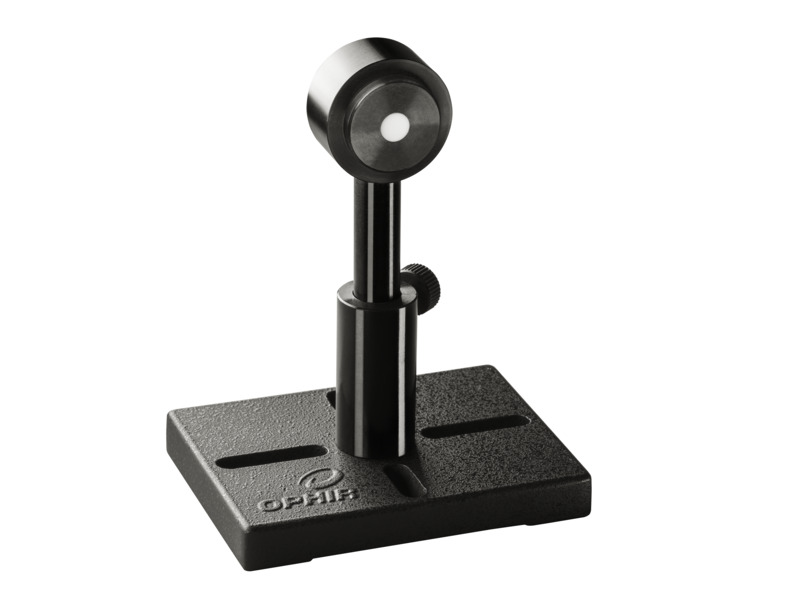

The PD300RM-8W LED and laser radiometer replaces traditional radiometers which are calibrated to a single wavelength (254nm, 365nm, etc.), offering calibration over a broad spectral range, which the user can access by entering any wavelength in the calibration range. The PD300RM is a general purpose circular geometry photodiode irradiance and dosage sensor with an 8mm aperture and a cosine corrected diffuser. Its spectral range is 350-850nm and its irradiance measuring range is 1μW/cm² - 8W/cm². The sensor comes with a 1.5 meter cable for connecting to StarBright & StarLite meters or Juno+ PC interface.

8 mm diameter aperture and a cosine corrected diffuser
350 to 850 nm spectral range
Measure LED irradiance and dosage

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Irradiance Range	Spectral Range	Maximum Average Power Density	Aperture Size	Availability	Featured Item	Price		Brand
		7Z02480 PD300RM-8W LED and Laser Radiometer, 1 μW/cm² to 8 W/cm², Ø8 mm, 350-850 nm $860 Show	7Z02480 PD300RM-8W LED and Laser Radiometer, 1 μW/cm² to 8 W/cm², Ø8 mm, 350-850 nm	UNIVERSAL	0.0	1.0	0.0		0.0	1 µW/cm² - 8 W/cm²	350-850 nm	50 W/cm²	Ø8 mm	Show		$860		Ophir

Show All

Specifications

Irradiance Range

1 µW/cm² - 8 W/cm²
Spectral Range

350-850 nm
Maximum Average Power Density

50 W/cm²
Aperture Size

Ø8 mm
Dimensions

Ø35 x 21 mm
Response Time

0.2 s

f'2 Cosine Correction Factor Accuracy

5%
Thermal Coefficient

-0.03%/°C
CE Compliance

Yes
China RoHS Compliance

Yes
UKCA Compliance

Yes

Features

Measuring LED Irradiance and Dosage with the PD300RM

Does your application involve irradiating a target surface with an LED? UV curing of adhesives is one example of such an application. Ophir’s new PD300RM sensor family measures irradiance and dosage for UV and Visible LEDs. This video explains what the PD300RM does, what is so unique about it, and how to use it.

Measuring Power of LEDs: UV, Visible and NIR

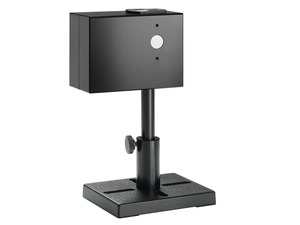

Measuring the emitted power of an LED can be tricky. It is different in some important ways from measuring the power of a laser beam. This video shows you how to use the Ophir 3A-IS Integrating Sphere Sensor, along with the Auxiliary LED accessory, to easily make accurate measurements in LED applications.

Frequently Asked Questions

Can I measure white LEDs with the PD300RM?
Answer
No, white LEDs have wideband spectrum. Try the PD300CIE for illuminance (lux) measurement.

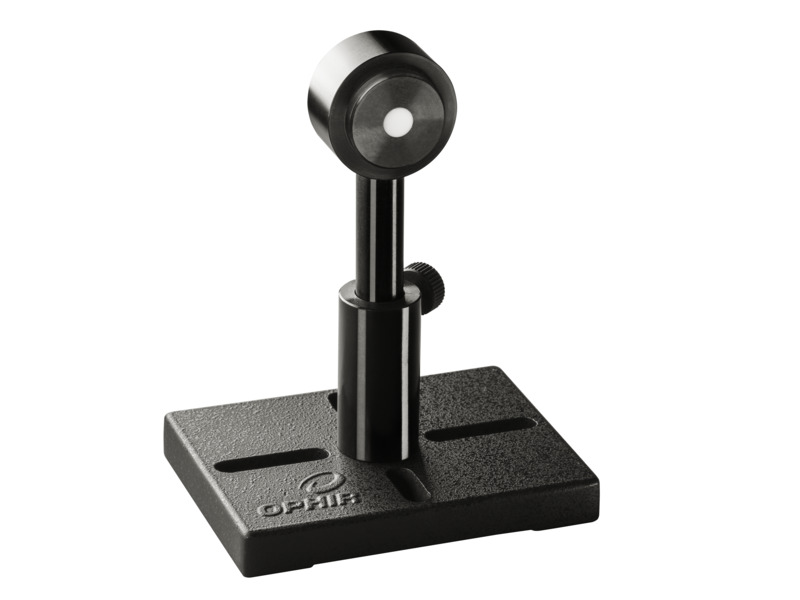

Can I measure a mercury lamp with the PD300RM-UV?
Answer
No, the PD300RM is a broadband detector. It doesn’t have a filter to isolate specific emission lines such as mercury lamp lines (365nm, 254nm) or spectral bands such as UVA, UVB. Custom solutions with filters are available. Contact Ophir for more information.

What is the accuracy of the PD300RM for LEDs and for lasers?
Answer
The accuracy when measuring irradiance of laser sources is easy to determine because lasers have very narrow bandwidth and their wavelength is well known. The accuracy for laser measurement is given in the specifications. When measuring the irradiance of LED sources, other issues such as bandwidth and wavelength tolerance come into play. For more details and specifications see the white paper.

Can I measure a laser with the PD300RM?
Answer
Yes, in applications where a laser beam is diverging or diffused, such as laser projectors, PD300RM can be used to measure the irradiance with high accuracy. However, it is not applicable for measuring a collimated laser beam. Use the PD300 for that.

What is the purpose of the PD300RM's diffuser?
Answer
In order to get a good cosine corrected response, a diffuser is placed in front of the photodiode to convert directional light into lambertian diffused light, thus eliminating any sensitivity to direction.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Frequently Asked Questions

Can I measure white LEDs with the PD300RM?
Answer
No, white LEDs have wideband spectrum. Try the PD300CIE for illuminance (lux) measurement.

Can I measure a mercury lamp with the PD300RM-UV?
Answer
No, the PD300RM is a broadband detector. It doesn’t have a filter to isolate specific emission lines such as mercury lamp lines (365nm, 254nm) or spectral bands such as UVA, UVB. Custom solutions with filters are available. Contact Ophir for more information.

What is the accuracy of the PD300RM for LEDs and for lasers?
Answer
The accuracy when measuring irradiance of laser sources is easy to determine because lasers have very narrow bandwidth and their wavelength is well known. The accuracy for laser measurement is given in the specifications. When measuring the irradiance of LED sources, other issues such as bandwidth and wavelength tolerance come into play. For more details and specifications see the white paper.

Can I measure a laser with the PD300RM?
Answer
Yes, in applications where a laser beam is diverging or diffused, such as laser projectors, PD300RM can be used to measure the irradiance with high accuracy. However, it is not applicable for measuring a collimated laser beam. Use the PD300 for that.

What is the purpose of the PD300RM's diffuser?
Answer
In order to get a good cosine corrected response, a diffuser is placed in front of the photodiode to convert directional light into lambertian diffused light, thus eliminating any sensitivity to direction.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Accessories

Female SM1 to SM1 Adapter

For mounting to SM1 optical components and systems.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		1G02260 Female SM1 to SM1 Adapter	UNIVERSAL		Show	$104

Thermal Sensor Cables

Order a different length cable along with sensor to receive a different cable than the standard 1.5 m cable.

Description	Compatibility	Avail.	Price
7E01122A Thermal Sensor Cable, 3 m Length, Connect to Power Meter	UNIVERSAL	Contact Us	$112
7E01122B Thermal Sensor Cable, 5 m Length, Connect to Power Meter	UNIVERSAL	Show	$112
7E01122C Thermal Sensor Cable, 10 m Length, Connect to Power Meter	UNIVERSAL	Show	$167
7E01122D Thermal Sensor Cable, 12 m Length, Connect to Power Meter	UNIVERSAL	Show	$167

Extended Warranty for Sensor

Customers that purchase the above items also consider the following items. Ophir-Spiricon meters and sensors include a standard manufacturers warranty for one year. Add a one year Extended Warranty to your meter or sensor, which includes one recalibration.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		XWAR-SENSOR Extended Warranty for Sensor	UNIVERSAL		Contact Us	$475
