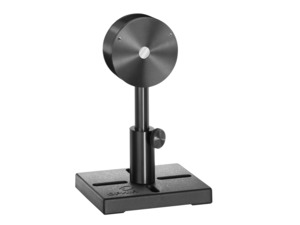

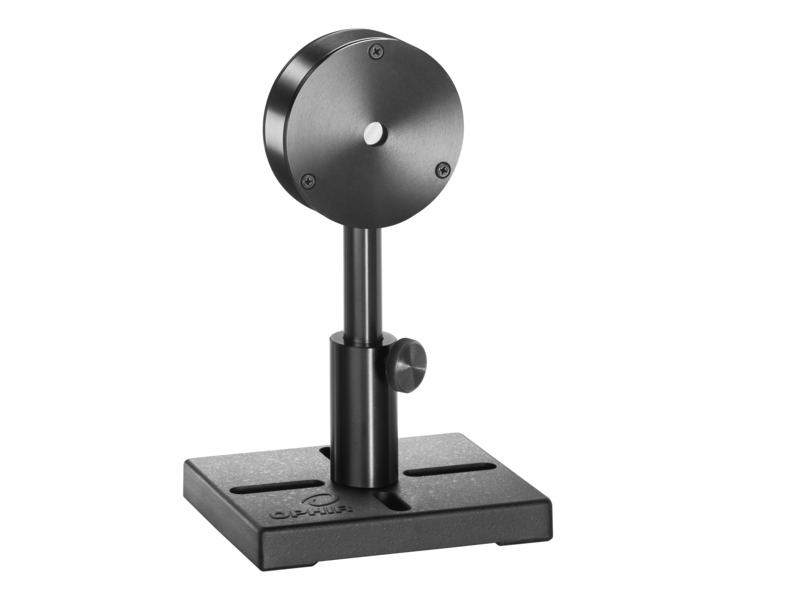

PD10-IR-pJ-C 30 pJ to 14 nJ Germanium Photodiode Energy Sensor

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Aperture Size	Spectral Range	Minimum Pulse Energy	Maximum Pulse Energy	Maximum Average Power Density	Availability	Featured Item	Price		Brand
		7Z02946 PD10-IR-pJ-C Photodiode Energy Sensor, 30 pJ to 14 nJ, Ø5 mm, 700-1800 nm $2,220 Contact Us	7Z02946 PD10-IR-pJ-C Photodiode Energy Sensor, 30 pJ to 14 nJ, Ø5 mm, 700-1800 nm	UNIVERSAL	0.0	1.0	0.0		0.0	Ø5 mm	700-1800 nm	30 pJ	14 nJ	5 W/cm²	Contact Us		$2,220		Ophir

Show All

PE-C Sensors with StarLab

Support for PE-C \ PD10-C sensors with Vega, Nova II, Juno, Juno+, Juno-RS, EA-1, StarLite and StarBright in StarLab application is now available. Follow step-by-step instructions to upgrade the embedded software in the PE-C \ PD10-C sensor with the StarLab application

When working with other meters and interfaces it is not necessary to update the embedded software of the PE-C \ PD10-C.

Note: PE-C \ PD10-C sensors can't be upgraded via EA-1 interface..

Specifications

Product Name

PD10-IR-pJ-C
Aperture Size

Ø5 mm
Material

Germanium
Spectral Range

700-1800 nm
Minimum Pulse Energy

30 pJ
Maximum Pulse Energy

14 nJ
Maximum Frequency

10,000 Hz
Maximum Average Power

0.2 mW

Maximum Average Power Density

5 W/cm²
Maximum Pulse Width

5 μs
Cable Length

1.5 m
Dimensions

Ø62 x 22 mm
CE Compliance

Yes
UKCA Compliance

Yes
China RoHS Compliance

Yes

Features

Measure Very Low Energy Laser Pulses

This video will show you how to overcome the challenges of measuring very low energy pulses, even in a noisy environment.

Sensors for Measuring Laser Energy

In this short "Basics" video, we review in general the use of pyro-electric sensors for measuring laser pulse energies.

How to Detect Missing Laser Pulses with a Pyroelectric Sensor

This video will show you how to detect and record any missing pulses in your pulsed laser beam application.

Additional Error with Frequency in a Pyroelectric Sensor

In many laser energy sensor specifications, there is an item called "Additional error with frequency". Learn what that means, and why and when it happens, in this video.

Frequently Asked Questions

Are pyro sensors suitable for power measurement and if so, what is the accuracy?
Answer
All Ophir pyroelectric sensors can measure average power with Ophir Power and Energy Meters. The instrument measures the number of pulses each second and multiplies the energy reading by the pulse rate. If the pulse rate is constant, then the accuracy of power measurement will be the same as the energy accuracy since the pulse rate measurement is very accurate.

What is the "User Threshold" feature on the Pyro-C series and how does it work?
Answer
The Pyro-C sensors have a "user threshold" feature allowing the user to adjust the measurement threshold in noisy environments. Increasing the threshold will prevent triggering on noisy signals and allow accurate measurment of energy and frequency, as long as the laser pulses are larger than the noise.

The trigger level can be adjusted up to 25% of full scale, however operation depends on the pulse width setting. For pulse width settings below ~0.25ms, the minimum energy that can be measured accurately is approximately 40% above the user threshold setting. Pulses below this energy level will trigger the sensor down to the user threshold level, but accuracy is compromised.

For pulse width settings above ~0.25ms, accuracy is good all the way down to the threshold. If the laser pulse width is less than 1/2 the setting, the minimum energy corresponds to the setting. However, with longer laser pulse widths, the minimum energy will be higher, rising to approximately twice the user threshold level when the laser pulse width is equal to the sensor pulse width setting.

It is recommended always to set the user threshold to the minimum possible setting to retain best energy accuracy in any given situation. See the user manual for further information on how to use the user threshold.

How does the pyroelectric sensor behave for pulsed radiation at a frequency which is over the data sampling rate?
Answer
The Power and Energy Meters simply decides it is time for a sample and takes the next pulse that comes after that time, e.g. if it samples at 400 Hz, then every 1/400th of a second it is ready to take the next pulse that comes along.

Are Pyro-C energy sensors compatible with all Ophir meters?
Answer
Yes, with certain limitations. Here are the points to be aware of:
Vega, Nova II, StarLite, StarBright meters and Juno PC interface: Full support of all features
All other instruments (Nova/Orion and LaserStar meters, as well as USBI, Pulsar, and Quasar PC interfaces): Support the Pyro-C sensors, except for the following features: Only 2 of the 5 pulse width settings are available.
User selectable threshold is not available.
In addition to the above: When using a Pyro-C sensor with the Nova (or Orion) meter, the "Nova PE-C Adapter" (Ophir p/n 7Z08272) is required.

Can I use a PE-C pyroelectric sensor for higher powers for a short time without the optional heat sink?
Answer
The catalog specification states the maximum power a sensor can be used with and without the heat sink. The purpose of the heat sink is to keep the sensor temperature below the maximum permitted at higher average powers. If you use the sensor for a short time only, on the order of 1-2 minutes at a time, you should be able to measure up to the higher power given in the spec even without the heat sink.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Frequently Asked Questions

Are pyro sensors suitable for power measurement and if so, what is the accuracy?
Answer
All Ophir pyroelectric sensors can measure average power with Ophir Power and Energy Meters. The instrument measures the number of pulses each second and multiplies the energy reading by the pulse rate. If the pulse rate is constant, then the accuracy of power measurement will be the same as the energy accuracy since the pulse rate measurement is very accurate.

What is the "User Threshold" feature on the Pyro-C series and how does it work?
Answer
The Pyro-C sensors have a "user threshold" feature allowing the user to adjust the measurement threshold in noisy environments. Increasing the threshold will prevent triggering on noisy signals and allow accurate measurment of energy and frequency, as long as the laser pulses are larger than the noise.

The trigger level can be adjusted up to 25% of full scale, however operation depends on the pulse width setting. For pulse width settings below ~0.25ms, the minimum energy that can be measured accurately is approximately 40% above the user threshold setting. Pulses below this energy level will trigger the sensor down to the user threshold level, but accuracy is compromised.

For pulse width settings above ~0.25ms, accuracy is good all the way down to the threshold. If the laser pulse width is less than 1/2 the setting, the minimum energy corresponds to the setting. However, with longer laser pulse widths, the minimum energy will be higher, rising to approximately twice the user threshold level when the laser pulse width is equal to the sensor pulse width setting.

It is recommended always to set the user threshold to the minimum possible setting to retain best energy accuracy in any given situation. See the user manual for further information on how to use the user threshold.

How does the pyroelectric sensor behave for pulsed radiation at a frequency which is over the data sampling rate?
Answer
The Power and Energy Meters simply decides it is time for a sample and takes the next pulse that comes after that time, e.g. if it samples at 400 Hz, then every 1/400th of a second it is ready to take the next pulse that comes along.

Are Pyro-C energy sensors compatible with all Ophir meters?
Answer
Yes, with certain limitations. Here are the points to be aware of:
Vega, Nova II, StarLite, StarBright meters and Juno PC interface: Full support of all features
All other instruments (Nova/Orion and LaserStar meters, as well as USBI, Pulsar, and Quasar PC interfaces): Support the Pyro-C sensors, except for the following features: Only 2 of the 5 pulse width settings are available.
User selectable threshold is not available.
In addition to the above: When using a Pyro-C sensor with the Nova (or Orion) meter, the "Nova PE-C Adapter" (Ophir p/n 7Z08272) is required.

Can I use a PE-C pyroelectric sensor for higher powers for a short time without the optional heat sink?
Answer
The catalog specification states the maximum power a sensor can be used with and without the heat sink. The purpose of the heat sink is to keep the sensor temperature below the maximum permitted at higher average powers. If you use the sensor for a short time only, on the order of 1-2 minutes at a time, you should be able to measure up to the higher power given in the spec even without the heat sink.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Accessories

Fiber Connector Adapters

These adapters allow for power measurement of connectorized fiber-optic cables. The sensor may need an additional mounting bracket to connect to these fiber adapters.

Description	Compatibility	Avail.	Price
7Z08227 SC Fiber Connector Adapter, Power and Energy Sensors	UNIVERSAL	In Stock	$302
7Z08226 ST Fiber Connector Adapter, Power and Energy Sensors	UNIVERSAL	In Stock	$264
7Z08229 FC Fiber Connector Adapter, Power and Energy Sensors	UNIVERSAL	In Stock	$153
1G01236A SMA Fiber Connector Adapter, Power and Energy Sensors	UNIVERSAL	In Stock	$74

Fiber Adapter Mounting Bracket

A mounting bracket is needed to connect most power and energy sensors to a fiber adapter (SC, ST, FC or SMA). This bracket can be used for photodiode energy sensors in the PD10 series.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		7Z08275 Fiber Adapter Mounting Bracket, PD10 Photodiode Energy Sensors	UNIVERSAL		In Stock	$176

Nova PE-C Adapter

The adapter plugs between the Nova D15 socket and the smart plug of the PE-C and PD-C sensors to allow the Nova to operate with these sensors.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		7Z08272 Energy Sensor Adapter, Connect PE-C and PD-C to Nova Meter	UNIVERSAL		In Stock	$165

PE-C to PE Size Adapter

The newer PE-C series sensors have a Ø62 mm diameter. The older PE series sensors have a Ø85 mm diameter. This adapter allows using the PE-C type sensors in jigs and setups that were originally designed for PE sensors.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		7Z08273 PE-C to PE Size Adapter, Ø62 to Ø85 mm	UNIVERSAL		Contact Us	$166

Fixed extension cables for Pyro Energy Sensors

Order a fixed extension cable along with sensor to receive a different cable than the standard 1.5 m cable.

Description	Compatibility	Avail.	Price
7E01174A Fixed extension cable for Pyro Energy Sensors, 3 m Length, Connect to Power Meter	UNIVERSAL	In Stock	$86
7E01174B Fixed extension cable for Pyro Energy Sensors, 5 m Length, Connect to Power Meter	UNIVERSAL	In Stock	$112
7E01174C Fixed extension cable for Pyro Energy Sensors, 10 m Length, Connect to Power Meter	UNIVERSAL	In Stock	$167

Modular extension cables for Pyro Energy Sensors

The extension cables can be ordered separately from the sensors.

Description	Compatibility	Avail.	Price
7E01198 Extension cable for Pyro Energy Sensors, 1.5 m Length, D15M-D15F	UNIVERSAL	In Stock	$68
7E01198A Extension cable for Pyro Energy Sensors, 3.5 m Length, D15M-D15F	UNIVERSAL	In Stock	$89
7E01198B Extension cable for Pyro Energy Sensors, 8.5 m Length, D15M-D15F	UNIVERSAL	In Stock	$134

Extended Warranty for Sensor

Customers that purchase the above items also consider the following items. Ophir-Spiricon meters and sensors include a standard manufacturers warranty for one year. Add a one year Extended Warranty to your meter or sensor, which includes one recalibration.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		XWAR-SENSOR Extended Warranty for Sensor	UNIVERSAL		Contact Us	$475

30 pJ to 14 nJ Germanium Photodiode Energy Sensors with Ø5 mm Aperture

30 pJ to 14 nJ Germanium Photodiode Energy Sensors with Ø5 mm Aperture
