SupIR 50/150 mm f/4.0 Motorized MWIR SXGA Imaging Lenses

Products
HFOV [deg]
Features
Resources
Contact Us

Overview

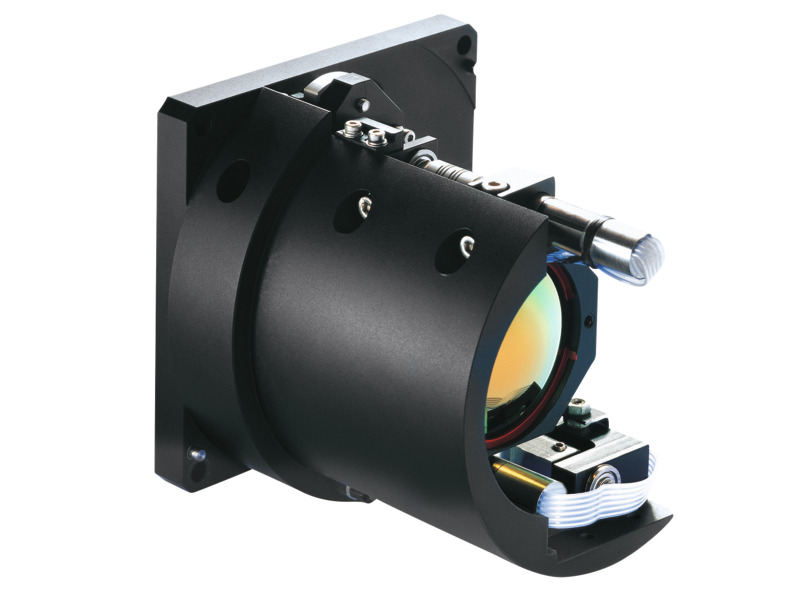

The SupIR 50/150 mm f/4.0 motorized focus MWIR imaging lens has a 50 and 150 mm focal lengths with an f-number of 4.0. This multiple field of view lens (M-FOV) is compatible with 1280x1024 SXGA format cooled MWIR cameras.

Advanced technologies for the highest performance mid-wave focal planes
High-efficiency 3.4 to 5 µm AR coating for MWIR wavelengths
Passive athermalization with the highest imaging performance from -32 to +55°C
Optimized for 1280x1024 SXGA cooled MWIR cameras with 10 μm pixel pitch
Motorized focus and FOV switch mechanism
Requires export license

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Coating Type	Avg.Trns.	Availability	Featured Item	Price		Brand
		65103 SupIR 50/150mm f/4.0 MWIR M-FOV Motorized Lens, SupIR, 50/150 mm FL, f/4.0, High Efficiency Contact Us	65103 SupIR 50/150mm f/4.0 MWIR M-FOV Motorized Lens, SupIR, 50/150 mm FL, f/4.0, High Efficiency	UNIVERSAL	0.0	1.0	0.0		0.0	High Efficiency	97%	Contact Us				Ophir

Show All

WFOV(50mm)

	Format
HFOV	640x512	1280x1024
15 µm	11.0°
10 µm	7.3°	14.6°

NFOV(150mm)

	Format
HFOV	640x512	1280x1024
15 µm	3.6°
10 µm	2.4°	4.8°

Specifications

Type

Multiple Field of View
Focal Length

50 / 150 mm
F/#

4.0
Coating Type

High Efficiency
Spectral Range

3.4 to 5 μm
Avg.Trns.

97%
Back Focal Length

26.28 mm in air
Focus Mechanism

Motorized
Focus Range

5 / 20 m to infinity
Focus Time

6 s

FOV Switch Mechanism

Motorized
FOV Switch Time

1 s
Weight

0.7 kg
Dimensions

133 x 101 x 98 mm (LxWxH)
Operating Temperature Range

-32°C to +55°C
Storage Temperature Range

-40°C to +70°C
Sealing

Consult factory
HD Format

Yes
Cold Stop FPA Distance

19.4 mm
Wavelength Region

MWIR

Features

High Performance Mid-Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
