SupIR 6.5 mm f/1.0 Fixed Focus LWIR HD Imaging Lenses

Products
HFOV [deg]
Features
Resources
Contact Us

Overview

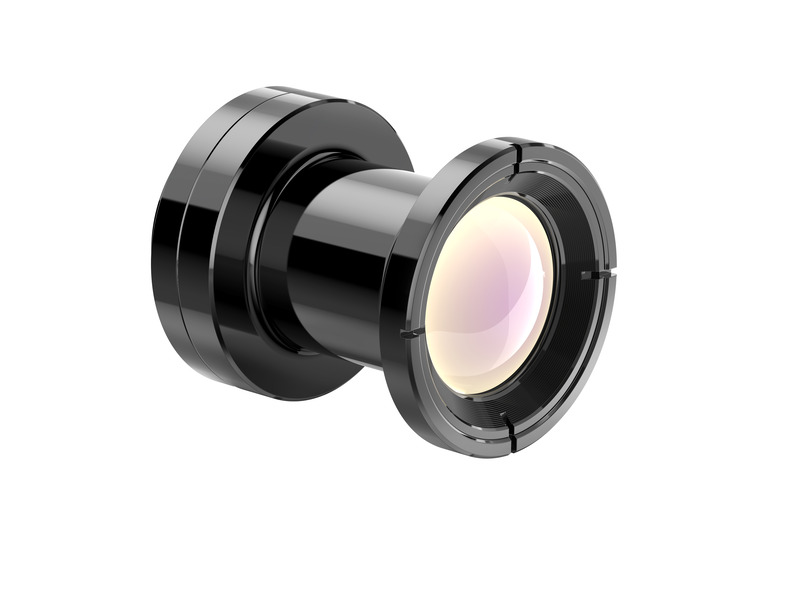

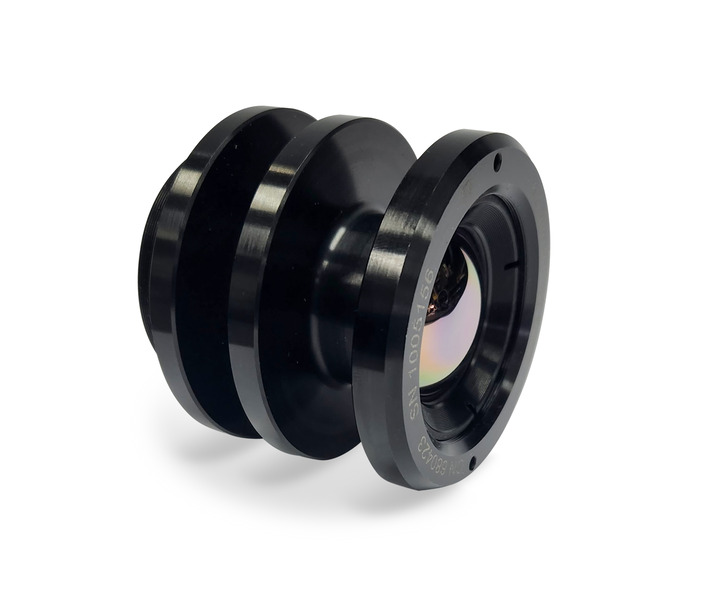

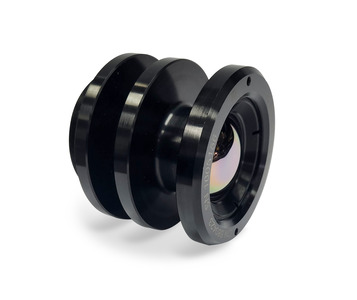

The SupIR 6.5mm f/1.0 fixed focus LWIR imaging lens has a 6.5 mm focal length with an f-number of 1.0. This single field of view lens (1-FOV) is designed for 1024x768 XGA format uncooled LWIR cameras.

Advanced technologies for the highest performance long wave focal planes
LWIR High-durability AR coating for 8 to 12 µm
Passive athermalization with the highest imaging performance from -40 to +80°C
Compatible with 10 & 12 μm pixel pitch, 1024x768 XGA format LWIR cameras
Providing superior performance from 1.6 m out to infinity
Requires export license

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Coating Type	Avg.Trns.	Availability	Featured Item	Price		Brand
		680423-001 SupIR 6.5mm f/1.0 LWIR 1-FOV Fixed Lens, SupIR, 6.5 mm Focal Length, f/1.0, High Durability Contact Us	680423-001 SupIR 6.5mm f/1.0 LWIR 1-FOV Fixed Lens, SupIR, 6.5 mm Focal Length, f/1.0, High Durability	UNIVERSAL	0.0	1.0	0.0		0.0	High Durability	90%	Contact Us

Show All

	Format
Pitch	320x240	384x288	640x480	1024x768
17 µm	45.6°	53.8°	82°
12 µm	32.9°	39.1°	61.8°	90°
10 µm	27.6°	32.9°	52.9°	78.2°

Specifications

Type

Single Field of View
Focal Length

6.5 mm
F/#

1.0
Coating Type

High Durability
Spectral Range

8-12 µm
Avg.Trns.

90%
Back Focal Length

12.89 mm in air

Focus Mechanism

Fixed
Focus Range

0.8 m to infinity
Depth of Field

1.6 m to infinity
Operating Temperature Range

-40°C to +80°C
Storage Temperature Range

-40°C to +80°C
Sealing

IP 67 front element only
Wavelength Region

LWIR

Features

High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
