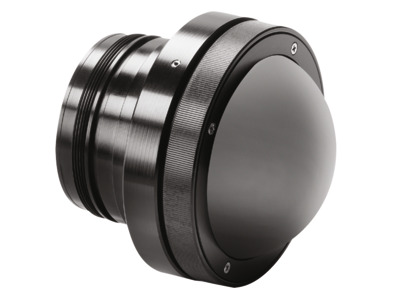

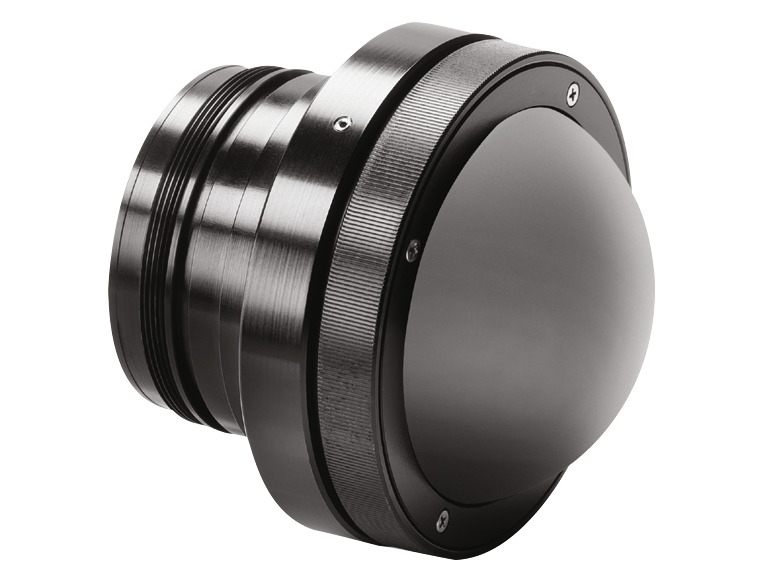

The SupIR 4.2mm f/1.4 fixed focus LWIR imaging lens has a 4.2 mm focal length with an f-number of 1.4. This single field of view lens (1-FOV) is designed for 1024x768 XGA format uncooled LWIR cameras.
Fisheye lens for extremely wide 180° FOV
LWIR High-durability and hard-carbon AR coatings for 8-12 µm
Passive athermalization with the highest imaging performance from -40 to +80°C
Compatible with 12 & 17 μm pixel pitch, 1024x768 XGA format LWIR cameras
Providing superior performance from 1 m out to infinity
Additional CAD file downloads are not available for this product.
fixed-4.2mm-f-1.4-lwir-hd-imaging-lens - Drawings
Additional drawings are not available for this product.
Format
Pitch
320x240
384x288
640x480
1024x768
17 µm
74.3°
89.2°
148.9°
180°
12 µm
52.5°
62.9°
104.8°
168.5°
Specifications
Type
Single Field of View
Focal Length
4.2 mm
F/#
1.4
Spectral Range
8-12 µm
Back Focal Length
12.44 mm
Focus Mechanism
Fixed
Focus Range
0.1 m to infinity
Depth of Field
1 m to infinity
Operating Temperature Range
-40°C to +80°C
Storage Temperature Range
-50°C to +85°C
Sealing
IP 67 front element only
Wavelength Region
LWIR
Features
High Performance Long Wave Focal Plane
Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.
Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:
Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings
Passive Athermalized Lens Assembly
Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
