Overview

These mounting brackets are used to mount fiber-optic adapters to energy sensors. Choose the mounting bracket specified for your sensor and the fiber adapter that matches the type of fiber you are using (FC, SC, ST, or SMA).

Mount fiber-optic adapters to energy sensors
ST, SC, FC and SMA fiber-optic adapters available
Measure Energy in an optical fiber

Products

Compare	Model	Compatibility	rankScore		Use	Availability	Price	Brand
7Z08275 Fiber Adapter Mounting Bracket, PD10 Photodiode Energy Sensors $176 In Stock	7Z08275 Fiber Adapter Mounting Bracket, PD10 Photodiode Energy Sensors	UNIVERSAL	1.0	10.0	PD10-C	In Stock	$176	Ophir
7Z08269 Fiber Adapter Mounting Bracket, PE9/PE10/PE25-C Pyroelectric Sensors $211 In Stock	7Z08269 Fiber Adapter Mounting Bracket, PE9/PE10/PE25-C Pyroelectric Sensors	UNIVERSAL	1.0	11.0	PE9-C, PE10-C, PE25-C	In Stock	$211	Ophir

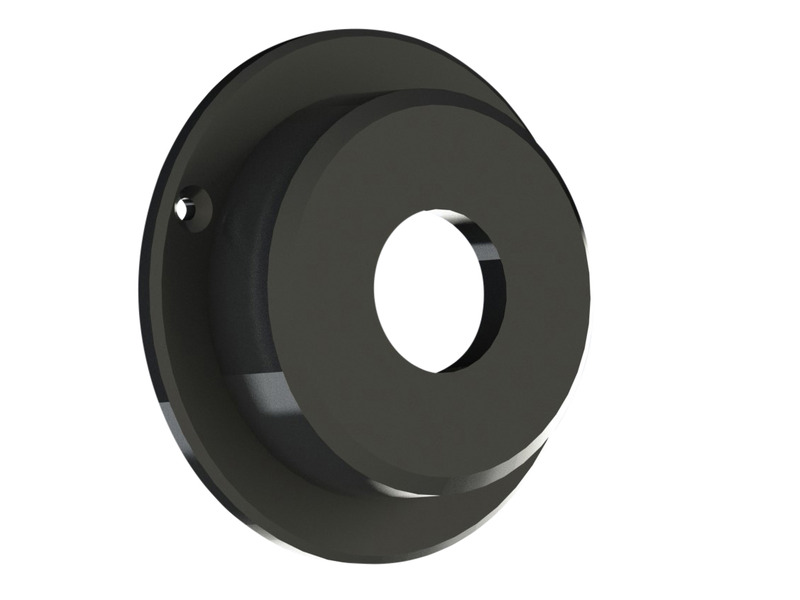

7Z08270 Fiber Adapter Mounting Bracket, PE50 Pyroelectric Sensors $268 In Stock	7Z08270 Fiber Adapter Mounting Bracket, PE50 Pyroelectric Sensors	UNIVERSAL	1.0	12.0	PE50-C	In Stock	$268	Ophir

Show All

Energy Sensor Series	SC Adapter	ST Adapter	FC, FC/APC Adapter	SMA Adapter	Fiber Adapter Mounting Bracket
PD10-C / PD10-IR-C / PD10-pJ-C / PD10-IR-pJ-C	7Z08227	7Z08226	7Z08229	1G01236A	7Z08275
PE9-C / PE9-ES-C / PE10-C / PE10BF-C / PE25-C / PE25BF-C					7Z08269
PE50-C / PE50BF-C					7Z08270

Frequently Asked Questions

Do the fast photodiode detectors (FPD & FPS-1) have attenuators and fiber adapters available for them?
Answer
Yes, there are a variety of accessories such as attenuators and fiber adapters available for the FPD & FPS-1 Fast Photodiode Detectors. Fast Photodiode Detectors are used for displaying temporal pulse shape on an oscilloscope. Please note that in order to mount these accessories to the FPS-1 you will need the SM1-to-M20 adapter 1G02259. This is mentioned in the catalog spec page but is sometimes missed. No adapter is needed for FPD models.

When using the fiber optic adaptor, how do we handle power loss due to the fiber relative to calibration?
Answer
All Ophir power meters, including photodiode power meters, have an air gap between the fiber tip and the sensor. Therefore they measure the power emitted by the fiber into the air and do not take into account any reflection losses there are in the fiber. Therefore, if in actual use, the fiber will be coupled with no loss to another element, then the losses should be added to the reading. These losses are usually about 4%. Thus if the reading on the Ophir meter is say 100 mW, then in lossless use, the real power will be 104 mW.

To connect a fiber to an Ophir sensor, why do I need 2 items – an “Adapter” and a “Mounting Bracket”
Answer
The idea is used with most (though not all) sensors; the fiber optic connectors are standard (such as FC, SMA, etc.), but the sensors are all different in their mechanics, so we use the standard FO connectors but provide in addition mounting brackets for connecting the FO connectors to the various sensors.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Can the PD300 be used with the filter in and with fiber adapter at the same time?
Answer
Yes, the adapter is arranged so the user can use it either with filter out or in.

Frequently Asked Questions

Do the fast photodiode detectors (FPD & FPS-1) have attenuators and fiber adapters available for them?
Answer
Yes, there are a variety of accessories such as attenuators and fiber adapters available for the FPD & FPS-1 Fast Photodiode Detectors. Fast Photodiode Detectors are used for displaying temporal pulse shape on an oscilloscope. Please note that in order to mount these accessories to the FPS-1 you will need the SM1-to-M20 adapter 1G02259. This is mentioned in the catalog spec page but is sometimes missed. No adapter is needed for FPD models.

When using the fiber optic adaptor, how do we handle power loss due to the fiber relative to calibration?
Answer
All Ophir power meters, including photodiode power meters, have an air gap between the fiber tip and the sensor. Therefore they measure the power emitted by the fiber into the air and do not take into account any reflection losses there are in the fiber. Therefore, if in actual use, the fiber will be coupled with no loss to another element, then the losses should be added to the reading. These losses are usually about 4%. Thus if the reading on the Ophir meter is say 100 mW, then in lossless use, the real power will be 104 mW.

To connect a fiber to an Ophir sensor, why do I need 2 items – an “Adapter” and a “Mounting Bracket”
Answer
The idea is used with most (though not all) sensors; the fiber optic connectors are standard (such as FC, SMA, etc.), but the sensors are all different in their mechanics, so we use the standard FO connectors but provide in addition mounting brackets for connecting the FO connectors to the various sensors.

Do I need to recalibrate my instrument? How often must it be recalibrated?
Answer
Unless otherwise indicated, Ophir sensors and meters should be recalibrated within 18 months after initial purchase, and then once a year after that.

Can the PD300 be used with the filter in and with fiber adapter at the same time?
Answer
Yes, the adapter is arranged so the user can use it either with filter out or in.
