Compare Model Drawings, CAD & Specs Diameter Edge Thickness Coating Type OEM Compatibility Availability Price
61268-117
Contact Us
 61268-117 1.0 in. 3.0 mm MMR
Contact Us
61271
Contact Us
 61271 2.0 in. 9.52 mm MMR Amada
Contact Us
62391-117
Contact Us
 62391-117 1.5 in. 9.52 mm MMR-P Trumpf
Contact Us
62444-117
Contact Us
 62444-117 1.75 in. 9.52 mm MMR Mazak
Contact Us
630064-117
Contact Us
 630064-117 1.5 in. 4.0 mm MMR Trumpf
Contact Us
630067-117
Contact Us
 630067-117 3.0 in. 6.35 mm MMR Amada
Contact Us
630331-117
Contact Us
 630331-117 3.0 in. 9.52 mm MMR
Contact Us
630917-117
Contact Us
 630917-117 2.0 in. 5.08 mm DEMMR
Contact Us

Specifications

  • Optic Material
    Silicon (Si)
  • S1 Radius
    Plano
  • S2 Radius
    Plano
  • Surface Quality
    10-5 scratch and dig
  • Surface Irregularity
    1 Fringe @ 633 nm
  • Power
    2 Fringes @ 633 nm
  • Wedge
    <3’ (arc minutes
  • Diameter Tolerance
    +0 / -0.12 mm
  • Thickness Tolerance
    ±0.1 mm

Features

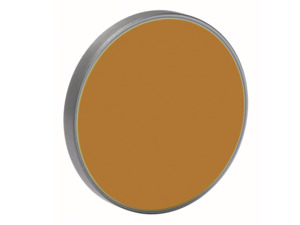

Total Reflector Mirror Coatings

MMR-P coating is a cost-effective way to maximize reflection (>99.90% for S-Pol), improve performance, protect highly-sensitive mirror surfaces and prolong product life. OEM-approved MMR-P coating provides the highest total random reflection available with superior P reflection (>99.80%) and total random reflection (>99.85%) and is suitable for both Cu and Si mirrors. This coating is internal cavity radiation resistant and allows for a phase shift tolerance of ±2@45° and >70% reflection for 630-670nm, for superior cutting and cleaning capabilities.

Coating Substrate %R@45°@10.6 %S-Pol@45°@10.6 %P-Pol@45°@10.6 %R@45°@0.6328 PS@45°AOI
MMR Si&Cu 99.8% 99.9% 99.75% 40% 0°±2°
MMR-A Si&Cu 99.8% 99.85% 99.60% 40% 0°±2°
MMR-H Si&Cu 99.7% 99.8% 99.60% >80%@650±20nm -
MMR-P Si&Cu - 99.9% 99.80% ≥55%@900-1000nm 0°±2°
