SupIR 15-100 mm f/1.4 LWIR Motorized Continuous Zoom XGA Imaging Lenses

Products
HFOV [deg]
Features
Resources
Contact Us

Overview

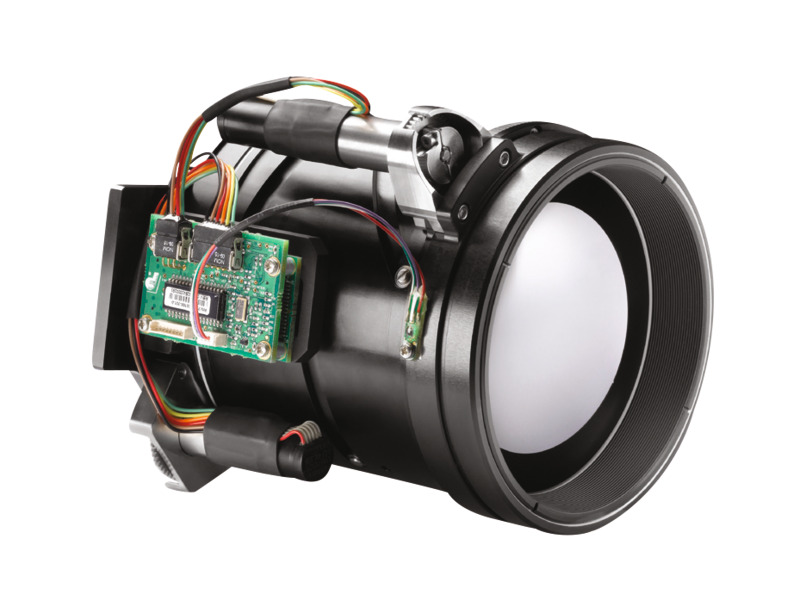

The SupIR 15-100mm f/1.4 motorized focus LWIR imaging zoom lens has a 15 to 100 mm focal length with an f-number of 1.4. This continuous zoom lens is designed for high definition format uncooled LWIR cameras.

Advanced technologies for the highest performance long wave focal planes
LWIR high-durability, hard-carbon and low reflection hard-carbon AR coatings
Passive athermalization with the highest imaging performance from -40 to +80°C
Compatible with 12 & 17 μm pixel pitch, 1024x768 XGA format LWIR cameras
Maintains sharp focus over the entire motorized zoom range
Vehicle detection range exceeding 6.5 km

See All Features

Products

Compare	Model	Compatibility	rankScore	Coating Type	Avg.Trns.	Availability	Brand
680090-007 SupIR 15-100mm f/1.4 LWIR Motorized Continuous Zoom Lens, SupIR, 15-100 mm FL, f/1.4, High Durability, HD, Gen3 Contact Us	680090-007 SupIR 15-100mm f/1.4 LWIR Motorized Continuous Zoom Lens, SupIR, 15-100 mm FL, f/1.4, High Durability, HD, Gen3	UNIVERSAL	1.0	High Durability	91%	Contact Us
680090-008 SupIR 15-100mm f/1.4 LWIR Motorized Continuous Zoom Lens, SupIR, 15-100 mm FL, f/1.4, Hard Carbon, HD, Gen3 Contact Us	680090-008 SupIR 15-100mm f/1.4 LWIR Motorized Continuous Zoom Lens, SupIR, 15-100 mm FL, f/1.4, Hard Carbon, HD, Gen3	UNIVERSAL	1.0	Hard Carbon		Contact Us
680090-009 SupIR 15-100mm f/1.4 LWIR Motorized Continuous Zoom Lens, SupIR, 15-100 mm FL, f/1.4, Low Reflection Hard Carbon, HD, Gen3 Contact Us	680090-009 SupIR 15-100mm f/1.4 LWIR Motorized Continuous Zoom Lens, SupIR, 15-100 mm FL, f/1.4, Low Reflection Hard Carbon, HD, Gen3	UNIVERSAL	1.0	Low Reflection Hard Carbon	84%	Contact Us	Ophir

Show All

WFOV (15 mm)

	Format
Pitch	320x240	640x480	1024x768
17 µm	20.9°	42.2°	68.4°
12 µm	15.6°	31.5°	47.8°

NFOV (100 mm)

	Format
Pitch	320x240	640x480	1024x768
17 µm	3.1°	6.2°	9.9°
12 µm	2.2°	4.4°	7.0°

Specifications

Type

Continuous Zoom
Focal Length

15-100 mm
F/#

1.4
Spectral Range

8-12 μm
Back Focal Length

16.07 mm in air
HD Format

Yes
Minimum Focus Range

1 m Wide, 10 m Narrow
Nuc (by defocus)

Yes
Focus Mechanism

Motorized
Focus Time

≤8 sec

Zoom Mechanism

Motorized
Zoom Time

≤5 sec at T >-10°C
≤8 sec at T ≤-10°C
Operating Temperature Range

-32°C to +80°C
Storage Temperature Range

-54°C to +85°C
Sealing

IP 67 front element only
Drive Voltage

12 V
Current Consumption

0.2 A average, 0.5 A peak
Communication Interface

RS422
Wavelength Region

LWIR

Features

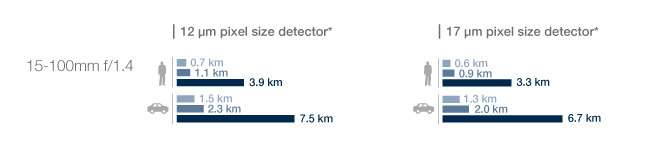

SupIR 15-100mm f/1.4 Detection, Recognition & Identification (DRI) Range

DRI ranges enable one to easily estimate the maximum range that an object can be either detected, recognized or identified. It is important to note that these estimates are based solely on geometrical parameters – the target size, distance, lens focal length and camera detector pixel size. Signal level, detector sensitivity, atmospheric conditions and other factors are not considered!

The calculations used here are based on the “Johnson Criteria”. According to the Johnson Criteria, the minimum resolution, pixels on target, required to achieve a 50% probability for an observer to discriminate an object are:

Detection: An object is present – 2 pixels on target (Lower Bar)
Recognition: discern the type of object, a human vs. a vehicle – 8 pixels on target (Middle Bar)
Identification: discern specific objects, a man vs. a woman, a car model – 12.8 pixels on target (Upper Bar)

Your Long Range Distance Needs Met

High Performance Long Wave Focal Plane

Using advanced technologies, top-quality materials and unique coating techniques, together with innovative engineering and opto-mechanical designs, we have earned a reputation for excellent performance, durability and quality.

High-durability and Hard-carbon AR Coatings

Our highly abrasion-resistant, anti-reflective advanced optical coatings include several types of Hard Carbon coatings which provide maximum durability, energy transmission & minimal reflection. Our innovative coating technologies include:

Physical Vapor Deposition (PVD) – Thermal heating and electron gun
Ion Assisted Deposition (IAD) – Ion gun
Plasma Enhanced Chemical Vapor Deposition (PECVD) for DLC coatings

Passive Athermalized Lens Assembly

Our IR imaging lens assemblies incorporate passive athermalization of the lenses and opto-mechanical system to maintain the highest imaging performance over the full operating temperature range. We use advanced materials that enable unique athermalization properties and optomechanical designs that effectively compensate for optical variations over a wide temperature range.
